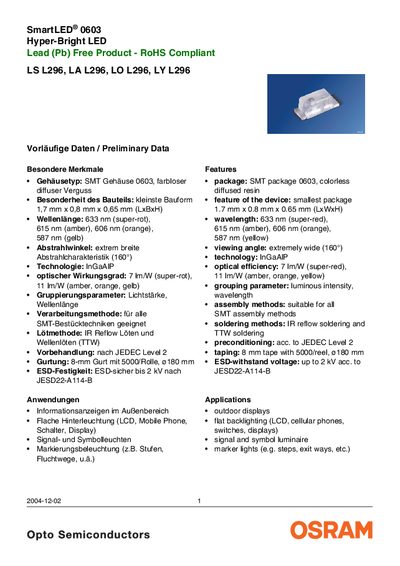

LS L296, LA L296, LO L296, LY L296 SmartLED® 0603 Hyper-Bright LED is a small, high-brightness, red, yellow, orange LED light suitable for various SMT technologies.
The LS L296 series from OSRAM includes four colour variants – super‑red, amber, orange and yellow – in a compact 0603 SMT package (1.7 mm × 0.8 mm × 0.65 mm). The LEDs feature a very wide 160° viewing angle and high optical efficiency (7 lm/W for super‑red, 11 lm/W for the other colours).
The document provides ordering information, maximum ratings, characteristic curves and grouping rules for brightness and wavelength. It also lists recommended assembly methods (IR reflow and TTW soldering) and environmental limits such as operating temperature and storage conditions. This manual is written in German.
| Package size | 1.7 mm × 0.8 mm × 0.65 mm (L × W × H) |
|---|---|
| Optical efficiency | 7 lm/W (super‑red), 11 lm/W (amber, orange, yellow) |
| Operating temperature range | -40 °C to +100 °C |
| Storage temperature range | -40 °C to +100 °C |
| Junction temperature (max) | +110 °C |
Both IR reflow soldering and TTW (wave) soldering are suitable for the LS L296 package.
The LEDs can operate from –40 °C up to +100 °C.
