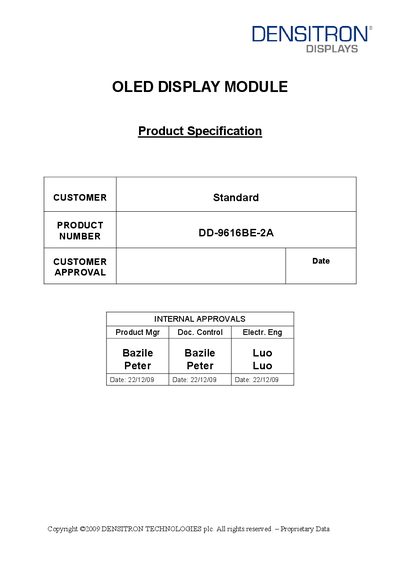

This document is a product specification sheet from DENSITRON TECHNOLOGIES plc, which describes the main features, mechanical specifications, electrical specifications, optical specifications, functional specifications, packaging and labeling specifications, quality assurance specifications, reliability specifications, precautions and other information of their OLED display module.
This datasheet describes the DD-9616BE-2A OLED display module, covering its main features such as a 96 × 16 dot passive‑matrix display, blue colour, SSD1306 driver IC and operating temperature range of –30 °C to +70 °C. Detailed mechanical dimensions, electrical maximum ratings and optical characteristics are listed for designers and integrators.
The document also includes packaging, labelling, quality assurance, reliability testing, and precautionary handling instructions, including storage in static‑protective bags, moisture avoidance, and recommendations for noise mitigation and fuse protection.
| Display Format | 96 × 16 Dots |
|---|---|
| Overall Dimensions (W × H × T) | 29.10 × 9.20 × 1.60 mm |
| Viewing Area | 23.104 × 5.504 mm |
| Active Area | 21.104 × 3.504 mm |
| Dot Size | 0.204 × 0.204 mm |
| Dot Pitch | 0.22 × 0.22 mm |
| Weight | 0.89 g |
| Driver IC | SSD1306 |
| Supply Voltage for Operation (Vpp) | -0.3 V to 4 V |
| Supply Voltage for Display (Vee) | 0 V to 15 V |
| Operating Temperature | -30 °C to +70 °C |
| Storage Temperature | -40 °C to +80 °C |
The module uses the SSD1306 driver IC.
Supply voltage for operation is –0.3 V to 4 V (Vpp) and supply voltage for display is 0 V to 15 V (Vee).
Store them in static‑protective bags, away from direct sunlight, high humidity, and temperatures below 0 °C; keep them in their original packaging.
