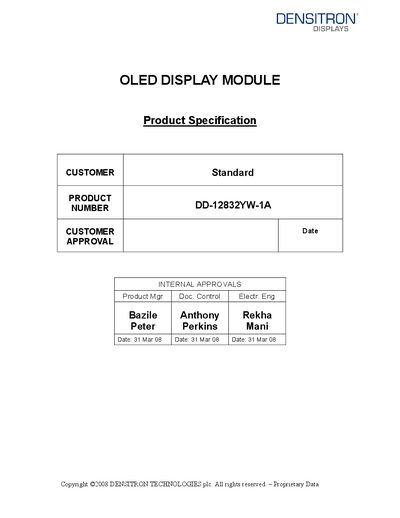

This document is a specification for DENSITRON TECHNOLOGIES OLED DISPLAY MODULE, which describes the main features, mechanical specifications, electrical specifications, optical specifications, functional specifications, packaging and labeling specifications, quality assurance specifications, reliability specifications, and handling precautions of the product.
The DD-12832YW-1A is a monochrome yellow OLED display module with a 128 × 32 dot format and passive‑matrix driving. It measures 62 × 24 × 2 mm, weighs 5.80 g, and uses the SSD1305 driver IC. Electrical ratings include a typical logic supply of 2.8 V and a display supply of 12.5 V, with operating temperatures from –30 °C to +70 °C.
The document also provides mechanical drawings, reliability test results, and handling precautions such as static‑discharge protection and cleaning recommendations. Proper packaging and storage conditions are outlined to ensure long‑term performance and avoid damage to the OLED elements.
| Display Format | 128 x 32 Dots |
|---|---|
| Overall Dimensions | 62.00 x 24.00 x 2.00 mm |
| Colour | Monochrome Yellow |
| Active Area | 55.02 x 13.10 mm |
| Viewing Area | 57.02 x 15.1 mm |
| Display Mode | Passive Matrix (2.23") |
| Driving Method | 1/32 duty |
| Driver IC | SSD1305 |
| Operating Temperature | -30 ~ +70 °C |
| Storage Temperature | -40 ~ +80 °C |
| Weight | 5.80 g |
| Dot Size | 0.41 x 0.39 mm |
| Dot Pitch | 0.43 x 0.41 mm |
The module operates from –30 °C to +70 °C.
Lightly wipe the surface with a soft cloth soaked in isopropyl alcohol, ethyl alcohol or trichlorotrifluoromethane, avoiding dry or hard materials and aromatic solvents.
The module measures 62.00 mm × 24.00 mm × 2.00 mm.
