The ADG794 is a low-voltage, 300 MHz quad 2:1 multiplexer/demultiplexer with high impedance outputs. The CMOS process provides low power dissipation yet gives high switching speed and low insertion loss. The ADG794 is suitable for RGB switches, HDTV, DVD-R and audio/video switches.
The ADG794 is a monolithic CMOS device that integrates four 2:1 multiplexers/demultiplexers with high‑impedance outputs. It operates from a single 3.3 V or 5 V supply, offers a wide 300 MHz bandwidth, low insertion loss (5 Ω typical on‑resistance), and ultra‑low quiescent current (1 nA typical). The device is TTL/CMOS compatible and includes robust ESD protection.

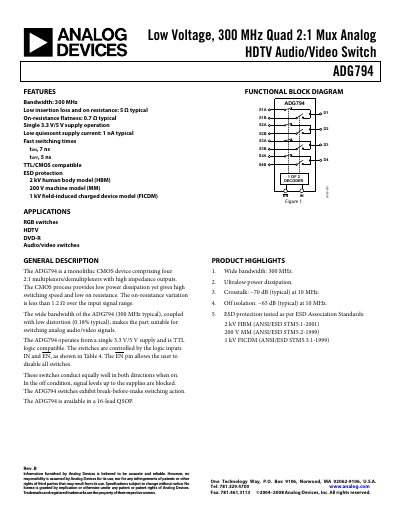

The datasheet provides detailed specifications, pin configurations, absolute maximum ratings, typical performance curves, and application examples such as RGB video switching and audio/video routing. Ordering information and outline dimensions for the 16‑lead QSOP package are also included.
| Bandwidth | 300 MHz (typ) |
|---|---|
| On‑Resistance (5 V version) | 5 Ω typ |
| On‑Resistance (3.3 V version) | 7 Ω typ |
| Quiescent Supply Current | 1 nA typ |
| Operating Temperature Range | –40 °C to +85 °C |
| ESD Protection | 2 kV HBM, 200 V MM, 1 kV FICDM |
The ADG794 provides a typical –3 dB bandwidth of 300 MHz.
The device is rated for industrial operation from –40 °C to +85 °C.
