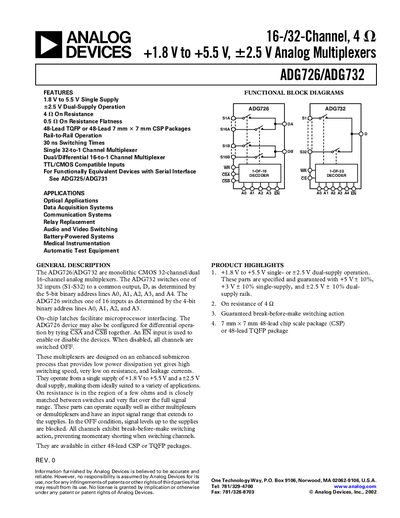

ADG726/ADG732 is a 16/32-channel, 4-bit, +1.8 V to +5.5 V, ±2.5 V analog multiplexer.
The ADG726 (16‑channel) and ADG732 (32‑channel) are monolithic CMOS analog multiplexers that switch one of many inputs to a common output under digital control. They feature 1.8 V to 5.5 V single‑supply operation, optional +2.5 V dual‑supply, low on‑resistance (≈4 Ω typ), and 30 ns switching times.
These devices are supplied in 48‑lead chip‑scale (LFCSP) and thin‑quad flat‑pack (TQFP) packages and are intended for optical, data‑acquisition, communication, audio/video switching, battery‑powered, medical, and test‑equipment applications.
| Supply Voltage (single‑supply) | 1.8 V to 5.5 V |
|---|---|
| Supply Voltage (dual‑supply) | +2.5 V dual‑supply |
| Switching Time | 30 ns typ |
| Break‑Before‑Make Delay | 18 ns typ |
| Bandwidth (ADG726) | 34 MHz typ |
| Bandwidth (ADG732) | 18 MHz typ |
They operate from 1.8 V to 5.5 V on a single supply or from +2.5 V dual‑supply.
The devices have switching times of roughly 30 ns.
