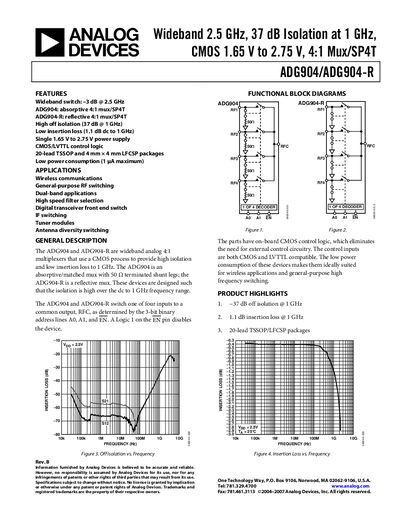

ADG904/ADG904-R is a low power, low insertion loss 4:1 mux/SP4T switch with a wideband operation frequency range of 2.5 GHz and a power supply voltage of 1.65 V to 2.75 V.
The ADG904 (absorptive) and ADG904‑R (reflective) are wideband analog 4:1 multiplexers that switch one of four RF inputs to a common output. They operate from a single 1.65 V to 2.75 V CMOS/LVTTL power supply and feature on‑board control logic, eliminating the need for external circuitry. High off‑isolation (37 dB at 1 GHz) and low insertion loss (1.1 dB at 1 GHz) make them suitable for wireless communications, RF switching, antenna diversity, and digital transceiver front‑ends.
Typical specifications include a 2 GHz operating frequency range, 3 dB bandwidth up to 2.5 GHz, and low power consumption (≤1 µA). The devices are offered in 20‑lead TSSOP and 4 mm × 4 mm LFCSP packages and are rated for industrial temperature operation from –40 °C to +85 °C.
| Operating Frequency | DC to 2 GHz |
|---|---|
| 3 dB Bandwidth | 2.5 GHz |
| Supply Voltage (VDD) | 1.65 V to 2.75 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Package Options | 20‑lead TSSOP, 4 mm × 4 mm LFCSP |
| Quiescent Power Supply Current | 0.1 µA |
The device operates from a single supply of 1.65 V to 2.75 V.
It is a 4:1 multiplexer that can switch one of four RF inputs to a common output.
