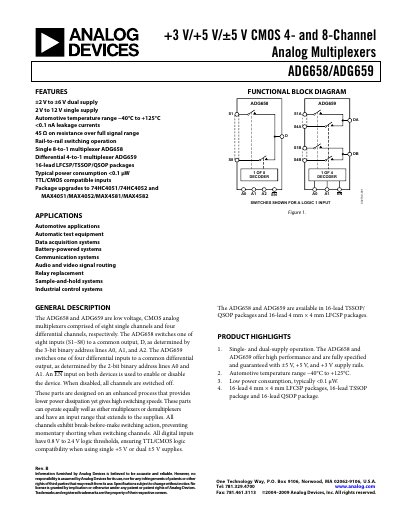

ADG658/ADG659 are analog switches from Analog Devices, which have ±2V to ±6V dual power supplies and 2V to 12V single power supplies.
The ADG658 and ADG659 are low‑voltage CMOS analog multiplexers offering 8‑to‑1 single‑ended and 4‑to‑1 differential switching, respectively. They support dual‑supply (±5 V) and single‑supply operation (2.7 V‑5.5 V) with rail‑to‑rail switching and break‑before‑make action.
Key applications include automotive systems, data acquisition, battery‑powered devices, communication equipment, audio/video routing, and industrial control. The devices are available in 16‑lead TSSOP, QSOP, and LFCSP packages and meet automotive temperature specifications of –40 °C to +125 °C.
| Dual‑supply voltage range | VDD = +5 V ±10%, VSS = –5 V ±10% |
|---|---|
| Single‑supply voltage range | 5 V ±10% (or 2.7‑3.6 V options) |
| Leakage current (OFF) | ±0.005 nA typ |
| Typical power consumption | <0.1 µW |
| Automotive temperature range | –40 °C to +125 °C |
| ADG658 bandwidth | 210 MHz typ |
The devices are rated for –40 °C to +125 °C in automotive use.
Typical power consumption is less than 0.1 µW.
