The ADG604 is a CMOS analog multiplexer, comprising four single channels. It operates from a dual supply of ±2.7 V to ±5.5 V, or from a single supply of 2.7 V to 5.5 V. The ADG604 switches one of four inputs to a common output, with fast switching times and low power consumption.
The ADG604 is a 4‑channel CMOS analog multiplexer with ultralow charge injection and low leakage currents. It operates from a dual supply of +2.7 V to +5.5 V or a single supply of 2.7 V to 5.5 V and is available in a 14‑lead TSSOP package.

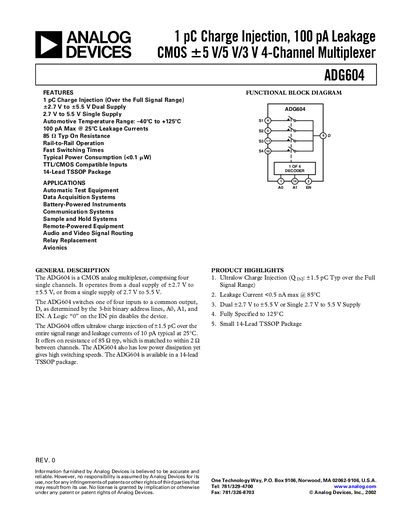

The document lists detailed electrical specifications, absolute maximum ratings, pin configuration, ordering guide, and typical performance graphs such as on‑resistance, bandwidth, and crosstalk. It also includes terminology definitions and mechanical dimensions for the package.
| Charge Injection typical | 1.5 pC |
|---|---|
| Source OFF Leakage Current typical | 0.01 nA |
| Supply Voltage (Dual) | +2.7 V to +5.5 V |
| Supply Voltage (Single) | 2.7 V to 5.5 V |
| Package | 14‑Lead TSSOP |
| Bandwidth (‑3 dB) typical | 280 MHz |
| Operating Temperature Range | -40°C to +125°C |
The device has a typical charge injection of 1.5 pC over the full signal range.
It supports a dual supply of +2.7 V to +5.5 V or a single supply of 2.7 V to 5.5 V.
The device operates from –40 °C to +125 °C.
