ADG1436 is a dual SPDT switch with 1.5Ω on resistance and 0.3Ω on-resistance flatness. It is suitable for applications such as automatic test equipment, data acquisition systems, battery-powered systems, sample-and-hold systems, audio signal routing, communication systems, and relay replacement.

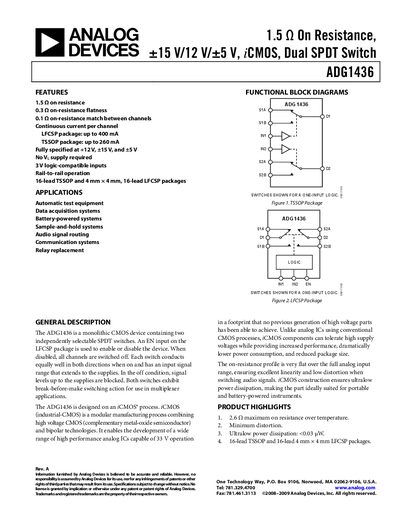

This handbook describes the ADG1436 iCMOS dual SPDT switch, including its features, applications, and functional block diagrams. It details the device’s on‑resistance, leakage currents, dynamic characteristics, and power requirements for 15 V, 12 V, and 5 V supply options.
The document also contains pin configurations, truth tables, continuous‑current ratings, absolute maximum ratings, ordering information, and mechanical dimensions. It is intended for designers and engineers who need detailed electrical and mechanical data for integrating the switch into their circuits.
| On Resistance (Ron) typical | 1.5 Ω |
|---|---|
| On‑Resistance Match typical | 0.1 Ω |
| Digital Input High Voltage | 2.0 V min |
| Digital Input Low Voltage | 0.8 V max |
| Power Supply Range (15 V dual supply) | Voo = +16.5 V, Vss = -16.5 V |
The typical on‑resistance is 1.5 Ω.
Digital inputs recognize a high level at 2.0 V minimum and a low level at 0.8 V maximum.
