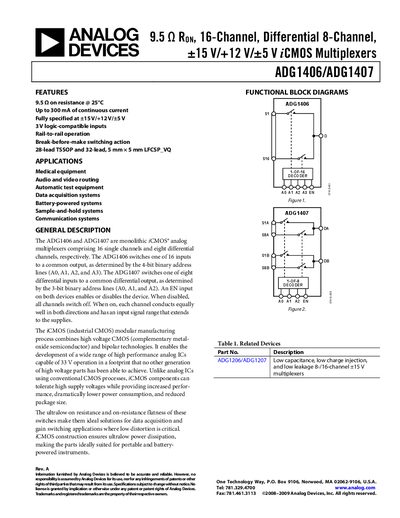

The ADG1406/ADG1407 are 16-channel single-ended and 8-channel differential iCMOS multiplexers with a 9.5 Ω on resistance that can provide up to 300 mA of continuous current at ±15 V/+12 V/±5 V power supply voltages. These devices are suitable for use in medical equipment, audio and video routing, automatic test equipment, data acquisition systems, battery-powered systems, sample-and-hold systems, and communications systems.
The ADG1406 (16‑channel) and ADG1407 (8‑channel differential) are monolithic CMOS analog multiplexers with rail‑to‑rail operation, low on‑resistance and break‑before‑make switching. They support dual‑supply (+15 V/‑15 V) or single‑supply configurations and include EN control for disabling all channels.
These devices are suited for medical equipment, audio/video routing, test equipment, data‑acquisition, battery‑powered instruments and other precision analog applications. The document also lists ordering options, package dimensions, thermal data and ESD precautions.
| On‑Resistance (Ron) typical | 9.5 Ω |
|---|---|
| Continuous Current per Channel (28‑Lead TSSOP, 15 V dual supply) | 180 mA max |
| Supply Voltage (dual) | Vop = +15 V ±10%, Vss = –15 V ±10% |
| Input High Voltage (Vint) | 2.0 V min |
| Input Low Voltage (Vint) | 0.8 V max |
| Bandwidth (ADG1407) | 110 MHz typ |
The typical on‑resistance is 9.5 Ω.
Each channel can carry up to 180 mA maximum.
Vop = +15 V ±10% and Vss = –15 V ±10% are the specified limits.
The ADG1407 has a typical bandwidth of 110 MHz.
