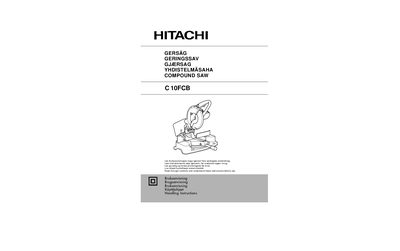

This manual covers the essential safety instructions for using the Hitachi C 10FCB compound saw, including keeping the work area clean, avoiding hazardous environments, and using only approved accessories. It also explains how to assemble the machine, attach the dust extraction system, and secure the workpiece before cutting.
Detailed sections describe the tool's technical data, standard and optional accessories, adjustment procedures, and proper operation techniques for both straight and bevel cuts. The document ends with a CE Declaration of Conformity and contact information for Hitachi service centers. This manual is written in Swedish.
| Power | 1640 W |
|---|---|
| No‑load speed | 4900 min⁻¹ |
| Dimensions (W × D × H) | 547 mm × 592 mm × 81 mm |
| Weight (net) | 14 kg |
| Maximum cutting angle | 45° |
Read all safety instructions, keep the work area clean, avoid using the tool near flammable liquids or gases, and wear appropriate protective equipment.
The tool is rated at 1640 W.
The tool measures 547 mm wide, 592 mm deep, and 81 mm high.
Standard accessories include a 255 mm TCT saw blade, a dust bag, a 10 mm box wrench, and a screw holder.
