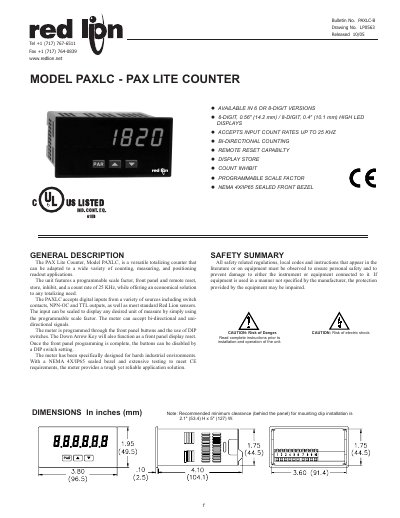

The PAX Lite Counter is a versatile totalizing counter that can be adapted to a wide variety of counting, measuring, and positioning readout applications. It features a programmable scale factor, front panel and remote reset, store, inhibit, and a count rate of 25 KHz, while offering an economical solution to any totalizing need. The PAXLC accepts digital inputs from a variety of sources including switch contacts, NPN-OC and TTL outputs, as well as most standard Red Lion sensors. The input can be scaled to display any desired unit of measure by simply using the programmable scale factor. The meter can accept bi-directional and uni- directional signals. The meter is programmed through the front panel buttons and the use of DIP switches. The Down Arrow Key will also function as a front panel display reset. Once the front panel programming is complete, the buttons can be disabled by a DIP switch setting. The meter has been specifically designed for harsh industrial environments. With a NEMA 4X/IP65 sealed bezel and extensive testing to meet CE requirements, the meter provides a tough yet reliable application solution.
The PAX Lite Counter (Model PAXLC) is a versatile totalizing counter designed for industrial environments. It offers 6‑digit (0.56\") or 8‑digit (0.4\") high‑LED displays, bi‑directional counting, programmable scale factor, and a maximum input count rate of 25 kHz.
This manual covers ordering information, installation, wiring, front‑panel operation, switch settings, scaling, programming, and safety guidelines. Detailed specifications, wiring diagrams, and step‑by‑step instructions are provided to help users set up and operate the meter safely and efficiently.
| Display | 6‑digit, 0.56" (14.2 mm) or 8‑digit, 0.4" (10.1 mm) LED |
|---|---|
| Power (AC) | 115/230 VAC, switch selectable, ±10 % line variation, 50/60 Hz, 6 VA |
| Maximum Count Rate | 25 kHz |
The meter can be ordered with either a 6‑digit 0.56‑inch LED display or an 8‑digit 0.4‑inch LED display.
