The CUB5 is a modular counter with optional relay output modules and serial communication modules. The counter has an 8-digit LCD display that can display values and units, and it is available in a reflective or backlight version with variable display intensity. The counter can be programmed as a single counter or dual counter, and it has a rate indication function. The counter can be programmed for 8 different counting modes, including bidirectional and quadrature counting modes. When programmed as a dual counter, each counter has a separate scale factor and decimal point. In the counter/rate indicator mode, each counter has its own scale factor and decimal point readings in different engineering units. The counter has two independent inputs, and the function of the counter depends on the polarity and frequency of the input signal.

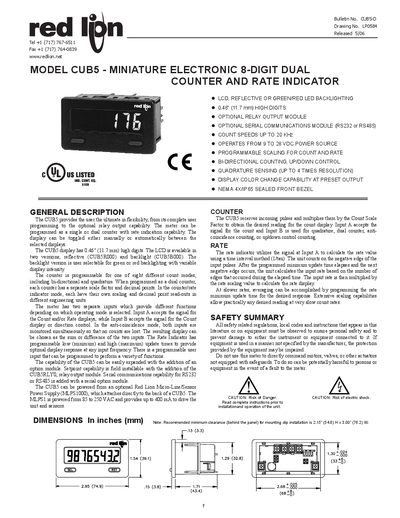

The CUB5 is a miniature electronic 8‑digit dual counter and rate indicator with optional relay output and serial communications modules. It operates from a 9‑28 VDC power source and offers programmable scaling, bi‑directional counting, quadrature sensing, and display color change capability.
The manual covers safety guidelines, installation steps, DIP‑switch configuration, wiring practices, optional plug‑in cards, front‑panel operation, and detailed programming procedures to customize the meter for various measurement applications.
| Display digits | 8‑digit LCD, 0.46" (11.7 mm) high digits |
|---|---|
| Power input range | +9 to +28 VDC |
| Maximum count rate | 20 kHz |
| Maximum rate frequency | 20 kHz |
| Accuracy (rate) | +0.01 % |
| Enclosure rating | NEMA 4X/IP65 |
| Operating temperature range | -35 °C to 75 °C |
| Weight | 3.2 oz (100 g) |
The meter operates from a power source of +9 to +28 VDC.
The backlight version allows the user to select either green or red LED backlighting.
Without the setpoint option card the maximum count rate is 20 kHz.
The unit is rated NEMA 4X/IP65 for indoor use.
