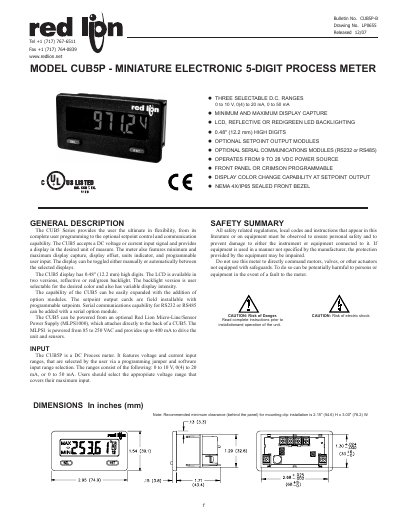

The CUB5 Series provides the user the ultimate in flexibility, from its complete user programming to the optional setpoint control and communication capability. The CUB5 accepts a DC voltage or current input signal and provides a display in the desired unit of measure. The meter also features minimum and maximum display capture, display offset, units indicator, and programmable user input. The display can be toggled either manually or automatically between the selected displays. The CUB5 display has 0.48" (12.2 mm) high digits. The LCD is available in two versions, reflective or red/green backlight. The backlight version is user selectable for the desired color and also has variable display intensity. The capability of the CUB5 can be easily expanded with the addition of option modules. The setpoint output cards are field installable with programmable setpoints. Serial communications capability for RS232 or RS485 can be added with a serial option module.
The CUB5P process meter provides a 5‑digit LCD display with 0.48" (12.2 mm) high digits. It accepts selectable DC voltage or current inputs (0‑10 V, 0‑20 mA, 0‑50 mA) and offers optional backlight (reflective or red/green) and setpoint output cards. The unit can be powered from 9‑28 VDC and is compatible with Red Lion’s Micro‑Line power supply.
The meter is rated NEMA 4X/IP65 for indoor use, operates from –35 °C to 75 °C, and includes optional RS232 or RS485 serial communication modules. Installation guidelines cover wiring, grounding, and EMC practices, while programming is performed via front‑panel buttons.
| Display digit height | 0.48" (12.2 mm) |
|---|---|
| Input voltage range | 0 V to 10 V |
| Input current range | 0 mA to 20 mA or 0 mA to 50 mA |
| Power supply range | 9 VDC to 28 VDC |
| Enclosure rating | NEMA 4X/IP65 |
| Weight | 3.2 oz (100 g) |
| Operating temperature range | -35 °C to 75 °C |
| Display backlight options | Reflective or selectable red/green LED |
| Optional communication modules | RS232 or RS485 serial cards |
The meter can accept 0 V‑10 V, 0‑20 mA, or 0‑50 mA input signals, selected via a jumper and software.
The LCD is available with a reflective display or a red/green LED backlight, and the backlight color can be chosen by the user.
The unit is rated NEMA 4X/IP65 for indoor use.
Optional RS232 and RS485 serial communication cards can be installed.
