This is a self-powered rate indicator with adjustable timebase and yellow/green or red backlighting. It features a 5-digit LCD display with 0.6 inch high digits, available in positive image reflective (black digits, reflective background) or negative image transmissive (illuminated digits, dark background) with red or yellow/green backlighting. The unit is constructed of a lightweight, high impact plastic case with a clear viewing window. The sealed front panel meets NEMA 4X/IP65 specifications for wash-down and/or dusty environments, when properly installed.
The Ditak 8 is a self‑powered 5‑digit LCD rate indicator with an adjustable timebase from 3.906 ms to 31.998 s. It offers selectable positive‑image reflective or negative‑image transmissive displays with yellow/green or red backlighting and an internal 3.0 V lithium battery that lasts over seven years.

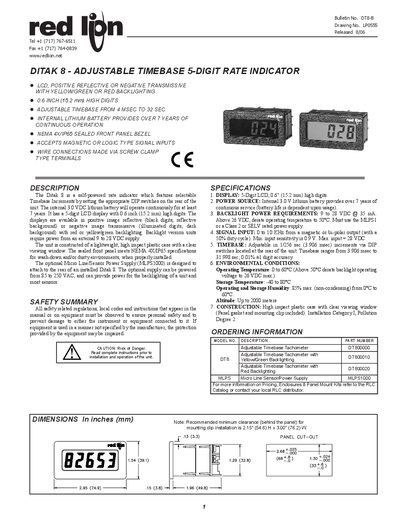

This bulletin includes detailed specifications, ordering information, certifications, EMC installation guidelines, wiring instructions, DIP‑switch configuration, a typical conveyor‑belt application, and step‑by‑step installation procedures for mounting the unit in a NEMA 4X/IP65 panel.
| Display | 5‑Digit LCD, 0.6" (15.2 mm) high digits |
|---|---|
| Power source | Internal 3.0 V lithium battery, >7 years continuous service |
| Backlight power requirements | 9 to 28 VDC @ 35 mA |
| Timebase range | 3.906 ms to 31.998 s (adjustable via DIP switches) |
| Operating temperature | 0 °C to 60 °C (derate above 50 °C) |
| Storage temperature | -40 °C to 80 °C |
The unit uses an internal 3.0 V lithium battery that provides over seven years of continuous operation.
The backlight requires a supply of 9 to 28 VDC at 35 mA.
