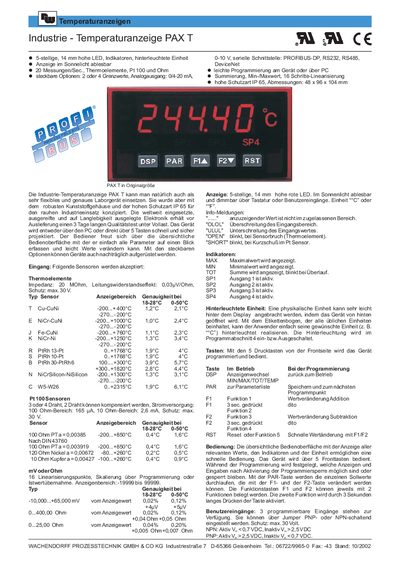

This document describes an industrial temperature display called PAX T. The display features a 5-digit, 14mm high LED screen that is readable in sunlight. It supports 20 measurements per second and can be used with thermocouples, Pt100, and ohm options. It has 2 or 4 plug-in limit values and analog outputs of 0-10V and 0/4-20mA. The display has a high protection rating of IP65 and dimensions of 48 x 96 x 104mm. It also supports various serial communication interfaces such as PROFIBUS-DP, RS232, and RS485. The display has a user-friendly interface and can be programmed via PC or directly on the device.
The PAX T is a rugged industrial temperature display with a 5‑digit, 14 mm high LED that remains readable in sunlight. It supports thermocouples, Pt100 and resistance sensors, offers up to 20 measurements per second, and can be powered from 85‑250 VAC or 11‑36 VDC.
The device is controlled via five front‑mounted buttons and can be expanded with plug‑in interface cards for RS‑232, RS‑485, DeviceNet, PROFIBUS‑DP, analog, relay or transistor outputs. It is rated IP65, operates from 0 °C to +50 °C (storage –40 °C to +60 °C) and weighs less than 300 g. This manual is written in German.
| Measurement Rate | 20 measurements per second |
|---|---|
| Power Supply (AC) | 85‑250 VAC, 50/60 Hz, 15 VA |
| Power Supply (DC) | 11‑36 VDC or 24 VAC |
| IP Rating | IP65 |
| Weight | < 300 g (without optional cards) |
| Analog Output Options | 0‑20 mA, 4‑20 mA, 0‑10 VDC |
| Front Buttons | 5 |
It can be powered from 85‑250 VAC (50/60 Hz, 15 VA) or from 11‑36 VDC (or 24 VAC) with a maximum of 30 V input protection.
The PAX T is rated IP65, making it dust‑tight and protected against water jets.
The unit is operated with five front‑mounted buttons.
