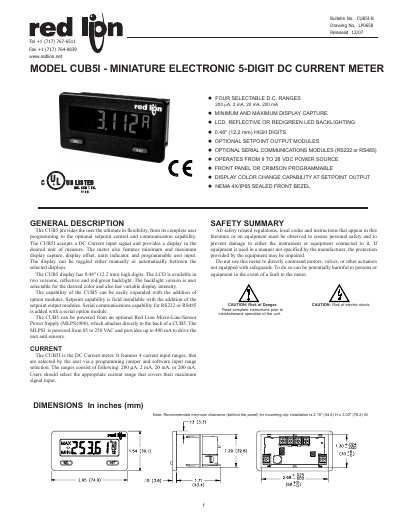

The CUB5I is a miniature electronic 5-digit DC current meter with four selectable DC current ranges and minimum and maximum display capture. It features an LCD display with reflective or red/green LED backlighting. Optional setpoint output modules and serial communications modules are available. It operates from a 9 to 28 VDC power source and can be programmed using the front panel or Crimson software.
The CUB5I is a miniature 5‑digit DC current meter with selectable input ranges (200 pA, 2 mA, 20 mA, 200 mA) and optional backlight, setpoint output and serial communication modules. It operates from a 9‑28 VDC power source and is rated NEMA 4X/IP65 for indoor use.
This manual covers safety guidelines, mechanical installation, wiring, optional plug‑in cards, front‑panel operation, and detailed programming procedures for signal input, setpoints, and communications. It also includes specifications, environmental limits, and troubleshooting tips.
| Display type | 5‑digit LCD, 0.48" (12.2 mm) high digits |
|---|---|
| Input voltage range | 9 VDC to 28 VDC |
| Current input ranges | 200 pA, 2 mA, 20 mA, 200 mA |
| Enclosure rating | NEMA 4X/IP65 |
| Operating temperature range | -35 °C to 75 °C |
The meter operates from a DC supply of 9 V to 28 V.
Four selectable ranges are available: 200 pA, 2 mA, 20 mA, and 200 mA.
It is rated NEMA 4X/IP65 for indoor use.
Yes, optional RS‑232 or RS‑485 communication cards can be added.
