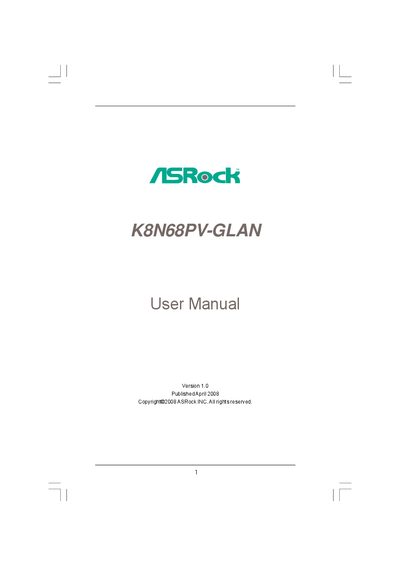

This manual provides instructions on how to install and use the K8N68PV-GLAN motherboard.
This manual introduces the ASRock K8N68PV-GLAN Micro‑ATX motherboard and guides users through hardware installation, BIOS configuration, and software support. It includes safety notices, warranty information, and regulatory compliance details.
Key sections cover package contents, detailed specifications, CPU and memory installation, expansion slot usage, SATA/IDE connectors, dual‑monitor setup, BIOS setup utility, and instructions for using the support CD to install drivers and utilities.
| Form Factor | Micro ATX (9.6‑in x 8.0‑in) |
|---|---|
| CPU Socket | Socket 754 for AMD Athlon™ 64 and Sempron processors |
| Chipset | NVIDIA® GeForce 7050 / nForce 630A MCP |
| Memory Slots | 2 x DDR DIMM slots |
| Maximum Memory | 2 GB |
| Supported Memory Types | DDR400/333/266 non‑ECC, un‑buffered |
| Expansion Slots | 1 × PCI‑Express x16, 1 × PCI‑Express x1, 2 × PCI |
| Integrated Graphics | NVIDIA® GeForce? Series (NV44) |
| Maximum Shared Video Memory | 256 MB |
| Audio Codec | Realtek ALC662 (5.1 CH HD Audio) |
| LAN | Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8211B) |
| Rear I/O Ports | 1 × PS/2 mouse, 1 × PS/2 keyboard, 1 × VGA/D‑Sub, 1 × VGA/DVI‑D, 1 × Parallel, 4 × USB 2.0, 1 × RJ‑45, HD audio jack |
It uses a Socket 754 compatible with AMD Athlon™ 64 and Sempron processors.
The board provides two DDR DIMM slots with a maximum total memory capacity of 2 GB.
Yes, the SATAII connectors support RAID 0, RAID 1, RAID 0+1, JBOD, NCQ, AHCI, and Hot‑Plug functions.
It includes a Gigabit LAN controller (10/100/1000 Mb/s) using the Realtek RTL8211B PHY.
