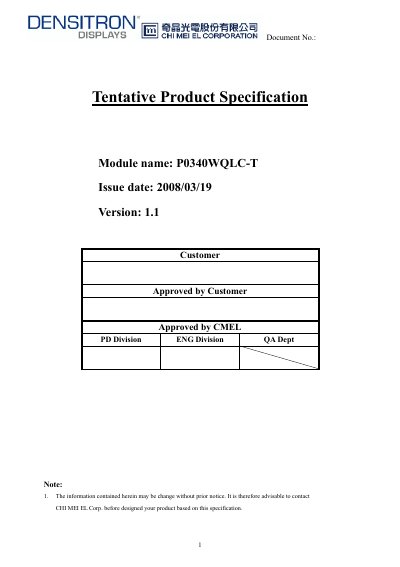

This document is a product specification manual that describes the general product specifications for the OLED module supplied by CMEL. The driving mode of the product is active matrix, the color mode is full color (16M color), the driver IC is HX5116, and the interface is 8-bit serial RGB and 24-bit parallel RGB. It is suitable for applications such as portable DVD, PMP, GPS, photo frames, etc.
The P0340WQLC‑T OLED module is defined with an active‑matrix driving mode and full‑color (16M) capability. It is intended for portable DVD players, PMP devices, GPS units, photo frames and similar applications. The module offers both 8‑bit serial RGB and 24‑bit parallel RGB interfaces.
Key mechanical data include a 3.4 inch diagonal, 480 × 272 resolution, 156 µm pixel pitch, and a thin 1.6 mm profile. Electrical specifications cover a logic supply range of –0.3 V to +3.6 V, operating temperature from –20 °C to +60 °C, and DCLK frequencies of 33.3 MHz (serial) or 11.1 MHz (parallel).
| Diagonal Size | 3.4 Inch |
|---|---|
| Resolution | 480 RGB x 272 |
| Pixel Pitch | H: 156 µm, V: 156 µm |
| Active Area | 74.88 x 42.43 mm |
| Outline Area | 82.8 x 54.3 mm |
| Thickness | 1.6 mm |
| Logic Supply Voltage (VCC) | -0.3 to +3.6 V |
| Operating Temperature | -20 °C to +60 °C |
| Serial RGB DCLK Frequency | 33.3 MHz |
| Parallel RGB DCLK Frequency | 11.1 MHz |
It uses an Active Matrix driving mode.
The module supports 8‑bit serial RGB and 24‑bit parallel RGB interfaces.
The module is rated for –20 °C to +60 °C operating temperature.
The display has a 3.4 inch diagonal.
