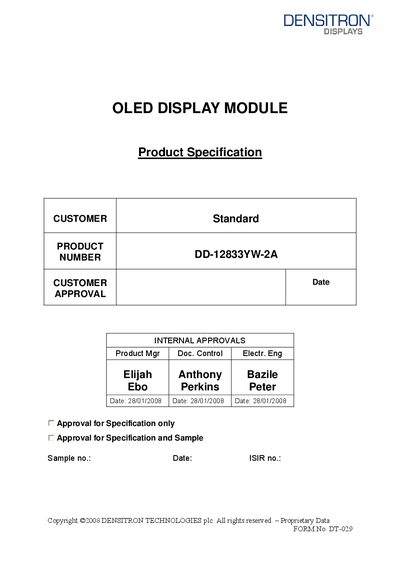

This is a document about the product specification of DENSITRON TECHNOLOGIES OLED display module, describing the main features and characteristics of the product.
The DD-12833YW-2A is a compact OLED display module with a 128 × 33 dot matrix, yellow monochrome output and a 2.23‑inch passive‑matrix screen. It is driven by an SSD1303 controller and operates over a wide temperature range.
The datasheet details mechanical dimensions, electrical ratings, pin assignments, optical performance, reliability testing, packaging, and safety precautions, helping designers integrate the module into their products safely and reliably.
| Display Format | 128 x 33 dots |
|---|---|
| Colour | Yellow Monochrome |
| Overall Dimensions | 62.30 x 22.60 x 2.00 mm |
| Viewing Area | 57.02 x 15.18 mm |
| Screen Size | 2.23" |
| Driver IC | SSD1303 |
| Operating Temperature | -30 °C to 85 °C |
| Storage Temperature | -40 °C to 90 °C |
| Power Supply Voltage (Logic) | 2.4 V to 3.5 V (typical 2.8 V) |
| OLED Power Supply Voltage | 0 V to 15 V |
| Connector Type | 20‑way ZIF |
| Weight | 6.15 g |
The module operates from –30 °C up to 85 °C.
The display is driven by the SSD1303 controller IC.
It uses a 20‑way ZIF connector.
Store the module between –40 °C and 90 °C.
