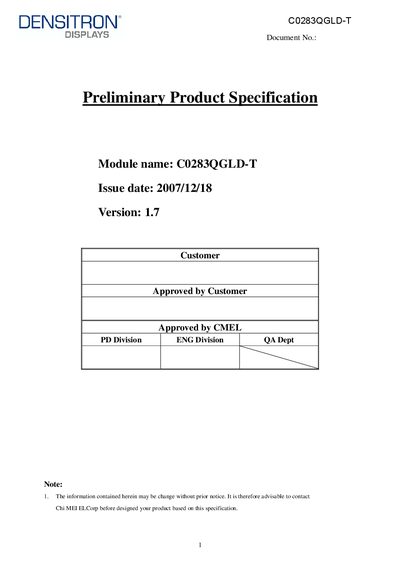

This document is a preliminary product specification for the C0283QGLD-T OLED module, including information on driving mode, color mode, driver IC, interface, etc.
The document defines the general product specification for the Densitron C0283QGLD-T OLED display module. It includes driving mode, color mode, interface options, and application notes such as use in cell phones.
Key sections provide mechanical dimensions, absolute maximum ratings, detailed DC and AC electrical characteristics, CPU interface timing for M68 and M80 buses, and reliability test procedures. The specification is marked as preliminary and may change without notice.
| Diagonal Size | 2.83" |
|---|---|
| Resolution | 240 x 320 |
| Pixel Pitch | 0.060 x 0.180 mm |
| Active Area | 43.2 x 57.6 mm |
| Thickness (typ) | 1.75 mm |
| Weight | 16 g |
| Driving Mode | Active Matrix |
| Operating Temperature | -20 °C to +60 °C |
The driving mode is Active Matrix.
The module operates from –20 °C to +60 °C.
VDD3 may be supplied between –0.3 V and +5.0 V.
The typical thickness is 1.75 mm.
