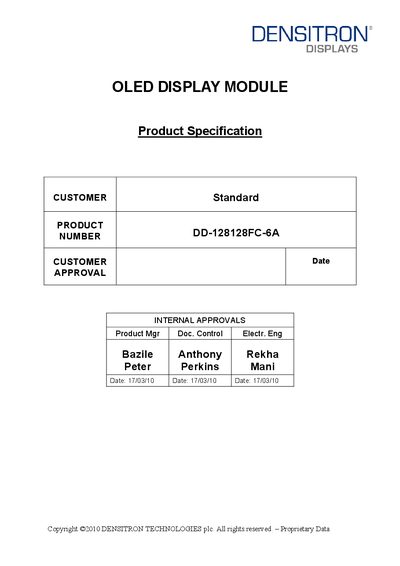

This document is the specification of DD-128128FC-6A product, which mainly introduces the main features of the product, including mechanical, electrical, optical, functional, packaging and labeling, quality assurance, reliability and precautions.
This manual describes the main features of the DD-128128FC-6A OLED display module, including its 128 × 128 RGB pixel format, 262,144 colours, passive‑matrix driving method, and SSD1351 driver IC. Mechanical dimensions, weight, and environmental limits are listed for integration into products.
Electrical specifications such as supply voltages, operating currents, and temperature ranges are detailed, along with recommended handling, storage, and design practices to ensure reliability and prevent damage from static electricity, moisture, or excessive noise.
| Display Format | 128 (RGB) x 128 Dots |
|---|---|
| Overall Dimensions | 33.8 x 34.00 x 1.60 mm |
| Colour | 262,144 Colour |
| Active Area | 26.855 x 26.864 mm |
| Viewing Area | 28.855 x 28.864 mm |
| Driving Method | 1/128 duty |
| Driver IC | SSD1351 |
| Operating Temperature | -30 ~ +70 °C |
| Storage Temperature | -40 ~ +80 °C |
| Operating Current for Vcc (Icc) | 41.8 mA |
| Weight | 3.75 g |
The module operates from –30 °C to +70 °C.
Store the module between –40 °C and +80 °C.
The display uses the SSD1351 driver IC.
