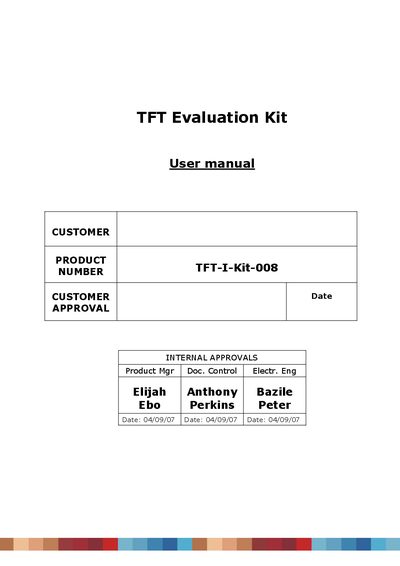

This user manual contains the instructions on setting up and using the Densitron Kyocera TFT evaluation kit. The evaluation kit contains a Kyocera TCG057VG1AC 5.7” TFT panel with anti-glare treatment, 640 x R.G.B x 480 dots, COG LCD with single U shaped CFL backlight. It also provides mechanical and electrical parameters of the TFT panel and driver card.
The Densitron TFT Evaluation Kit includes a Kyocera 5.7" TFT panel, driver card, CCFL inverter, power supply and cables. This manual provides instructions for assembling the kit, connecting the display, and configuring the SBC.
Detailed sections cover mechanical and electrical parameters, interface signal definitions, jumper settings, BIOS setup, driver installation, and technical support contact information.
| Power input voltage (VDD) range | 0 – 4.0 V |
|---|---|
| Input signal voltage (Vin) range | -0.3 – 6.0 V |
| Typical power input voltage | 3.3 V |
| Typical current consumption | 210 mA |
| Maximum current consumption | 270 mA |
| Permissive input ripple | 100 mVp‑p |
| Panel dimensions | 144.0 x 104.8 x 13.0 mm |
| Effective viewing area | 117.2 x 88.4 mm |
| Dot pitch | 0.06 x 0.18 mm |
| Recommended inverter | TDK CXA-L0612A-VIL |
The manual recommends using the TDK CXA‑L0612A‑VIL inverter.
The inverter must never be touched while the system is powered because it produces high voltages and is a shock hazard.
The kit includes one Kyocera TCGO57VG1AC 5.7" TFT panel.
Connect the pink and white cables from the display to connector CN2 on the inverter.
