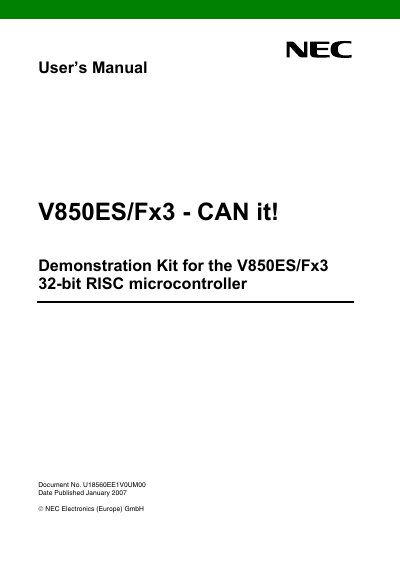

V850ES/Fx3 - CAN it! is a demonstration kit for the V850ES/Fx3 32-bit RISC microcontroller from NEC Electronics (Europe) GmbH. This manual provides user instructions for the demonstration kit.
The NEC V850ES/Fx3 – CAN it! demonstration kit provides a complete development platform for the V850ES/Fx3 32‑bit RISC microcontroller. This manual describes the system configuration, baseboard and CPU module components, and the required power and USB connections.
It also guides users through hardware installation, software setup on Windows 98/2000/XP, on‑chip debugging, FPL FLASH programming, sample programs and troubleshooting. Safety precautions for handling the equipment and regulatory information are included.
| Supply oscillator frequency | 4.00 MHz |
|---|---|
| Supply oscillator multiply rate | 8.00 |
| Display type | 12×2 character LC display |
| USB interface connector | Mini‑B type |
Users must ground themselves and the workbench, and wear a wrist strap to avoid static electricity buildup.
Set the frequency to 4.00 MHz and the multiply rate to 8.00 as recommended in the manual.
