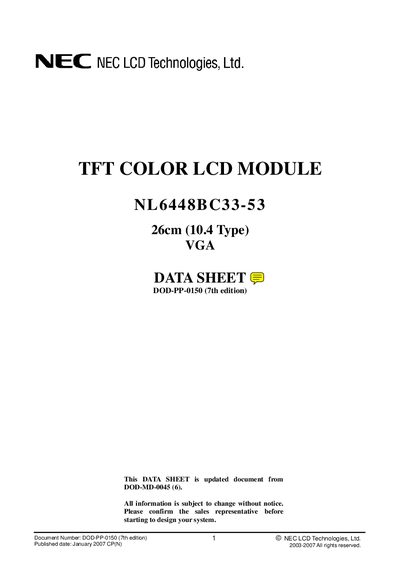

This document is a datasheet published by NEC LCD Technologies, Ltd., which describes the features and characteristics of the NL6448BC33-53 model TFT color LCD module.
The NL6448BC33-53 is a 26 cm (10.4‑inch) TFT color LCD module with a‑Si active‑matrix driver LSIs and edge‑light backlight. It is intended for industrial applications such as computers, test equipment, and control systems.
The datasheet lists the module's mechanical size, display area, resolution, color depth, contrast ratio, viewing angles, power consumption, and electrical ratings, as well as wiring and connector information for integration into customer equipment.
| Display area | 211.2 mm × 158.4 mm |
|---|---|
| Diagonal size | 26 cm (10.4 inches) |
| Resolution | 640 × 480 pixels |
| Color depth | 262,144 colors |
| Contrast ratio | 500:1 (typ.) |
| Viewing angle | 85° horizontal, 85° vertical (typ.) |
| Power supply voltage (signal board) | 3.3 V or 5.0 V |
| Backlight type | Edge‑light with 2 cold‑cathode fluorescent lamps |
| Power consumption (typ.) | 5.9 W |
The typical contrast ratio is 500:1.
It uses an edge‑light type backlight with two cold‑cathode fluorescent lamps.
