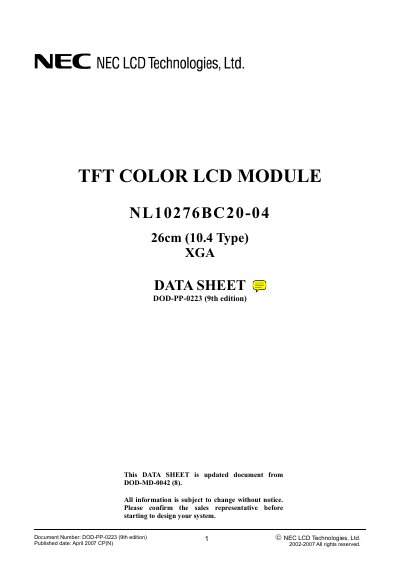

This document is about the NL10276BC20-04 26cm (10.4 Type) XGA liquid crystal module produced by NEC LCD Technologies, Ltd.
This datasheet describes the NEC NL10276BC20-04 26 cm (10.4‑inch) XGA color LCD module. It includes mechanical dimensions, display performance, power requirements and environmental limits. The module uses an a‑Si TFT active‑matrix panel with a 262,144‑color capability and LVDS video interface.
Key sections cover the module outline, general specifications, block diagram, detailed mechanical and electrical specifications, power‑supply sequencing, interface pin functions, optics, reliability tests and handling precautions.
| Display area | 210.4 mm × 157.8 mm |
|---|---|
| Diagonal size | 26 cm (10.4 inches) |
| Resolution | 1,024 × 768 pixels |
| Color depth | 262,144 colors |
| Contrast ratio | 300:1 (typ.) |
| Power consumption | 6.2 W (typ., inverter not included) |
| Backlight type | Edge‑light with 2 cold‑cathode fluorescent lamps |
| Power supply voltage (panel board) | 3.3 V |
| Interface | Single‑link LVDS |
| Module size | 243.0 mm × 185.1 mm × 11.0 mm (typ.) |
Typical power consumption is 6.2 W, not including the inverter’s dissipation.
It uses an edge‑light design with two cold‑cathode fluorescent lamps that are replaceable.
The module provides a single‑link LVDS interface for 6‑bit digital RGB signals.
