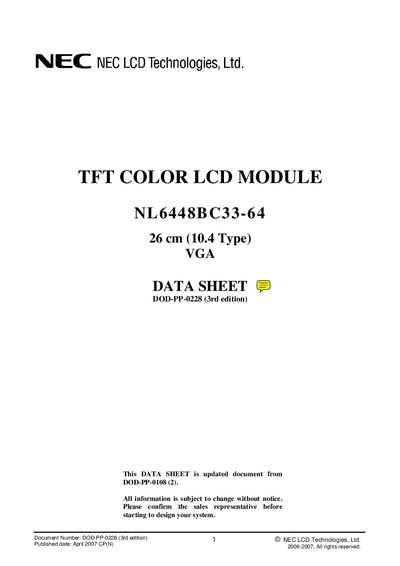

The NL6448BC33-64 is a 26 cm (10.4 in) color LCD module using an a‑Si TFT active‑matrix panel with edge‑light backlight and replaceable lamps. It is intended for industrial applications such as computers, test equipment, and control systems.
The datasheet provides mechanical dimensions, electrical ratings, power consumption, and detailed pin‑out information, along with reliability test procedures and mounting guidelines.
| Display area | 211.2 mm × 158.4 mm |
|---|---|
| Diagonal size | 26 cm (10.4 in) |
| Resolution | 640 × 480 pixels |
| Contrast ratio | 600:1 (typ.) |
| Horizontal viewing angle | 80° (typ.) |
| Power consumption | 6.2 W (typ.) |
| Backlight type | Edge‑light, 2 cold‑cathode fluorescent lamps |
| Weight | 475 g (typ.) |
The typical contrast ratio is 600:1.
The torque must not exceed 0.294 N·m.
The recommended inverter part number is 104PW201.
