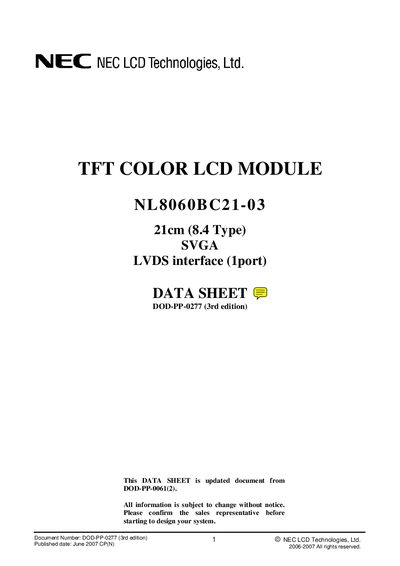

NL8060BC21-03 is a 21cm (8.4 Type) SVGA LVDS interface of TFT COLOR LCD MODULE from NEC.
The NL8060BC21-03 is a 21 cm (8.4‑inch) SVGA TFT LCD module from NEC LCD Technologies. It uses an LVDS interface (1 port) and is intended for industrial applications such as computers, test equipment, and automation displays.
Key specifications include a 800 × 600 pixel resolution, 16.8 million colors at 8‑bit input, 600:1 contrast ratio, 25 ms response time, and typical power consumption of 5.5 W. The module measures 200 × 152 × 10.5 mm and weighs about 330 g.
| Display area | 170.4 × 127.8 mm |
|---|---|
| Diagonal size | 21 cm (8.4 inches) |
| Resolution | 800 × 600 pixels |
| Colors (8‑bit input) | 16,777,216 |
| Pixel pitch | 0.213 × 0.213 mm |
| Module size (typ.) | 200.0 × 152.0 × 10.5 mm |
| Weight (typ.) | 330 g |
| Contrast ratio (typ.) | 600:1 |
| Viewing angle (horizontal) | 80° left/right (typ.) |
| Response time (typ.) | 25 ms |
| Power consumption (typ.) | 5.5 W |
It uses an LVDS interface (1 port).
The module measures 200.0 mm wide, 152.0 mm high and 10.5 mm deep (typical).
It can display 16,777,216 colors with an 8‑bit input.
