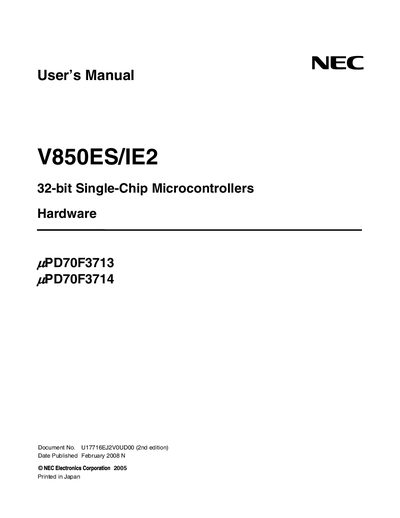

This manual introduces the hardware functions of V850ES/IE2 32-bit single-chip microcomputers μPD70F3713 and μPD70F3714.
This manual provides detailed information on the hardware features of the NEC V850ES/IE2 32‑bit single‑chip microcontroller. It includes pin functions, CPU architecture, on‑chip peripheral descriptions, port configurations, and electrical specifications needed for system design.
The document also contains handling guidelines such as ESD precautions, unused pin treatment, power‑on/off sequencing, and revision history. Contact information for NEC Electronics worldwide is provided at the end of the manual.
| Word size | 32 bits |
|---|---|
| Halfword size | 16 bits |
| Byte size | 8 bits |
Unused CMOS input pins should be tied to VOP or GND through a resistor to fix the input level high or low.
The electrical specifications are detailed in Chapter 19 of the manual.
