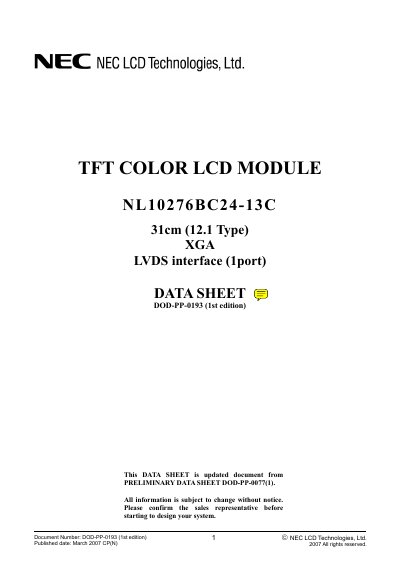

This data sheet is about NEC NL10276BC24-13C, a 12.1-inch TFT color LCD module that supports XGA LVDS interface
The NEC NL10276BC24-13C is a 12.1‑inch (31 cm) TFT color LCD module with an XGA resolution of 1,024 × 768 pixels. It uses an a‑Si TFT active‑matrix panel, LVDS Iport interface, and edge‑light backlight with two cold‑cathode fluorescent lamps.
The datasheet provides detailed mechanical, electrical, and optical specifications, including module dimensions, power consumption, contrast ratio, viewing angles, and recommended operating conditions for industrial applications.
| Display area | 245.76 mm (H) × 184.32 mm (V) |
|---|---|
| Diagonal size | 31 cm (12.1 inches) |
| Resolution | 1,024 (H) × 768 (V) pixels |
| Contrast ratio | 600:1 (typ.) |
| Viewing angle (horizontal) | 70° left / 70° right (typ.) |
| Viewing angle (vertical) | 45° up / 55° down (typ.) |
| Backlight type | Edge‑light, 2 cold‑cathode fluorescent lamps |
| Module size | 280 mm (W) × 210 mm (H) × 13 mm (D) (typ.) |
| Weight | 755 g (typ.) |
It uses an LVDS Iport interface for data transmission.
The typical contrast ratio is 600:1.
The panel provides a resolution of 1,024 × 768 pixels.
