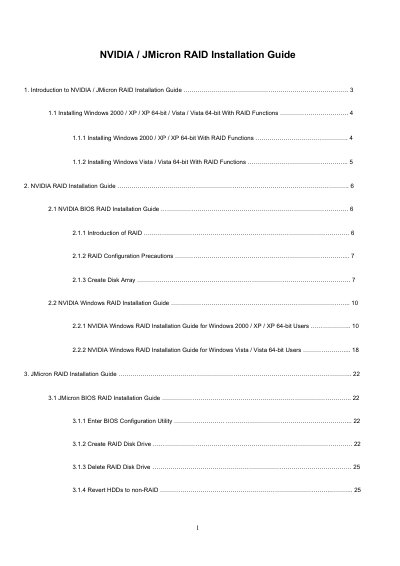

This document is an introduction to the NVIDIA / JMicron RAID installation guide. It provides detailed steps and instructions for installing Windows operating system and NVIDIA and JMicron RAID.
This guide explains how to set up RAID arrays using the NVIDIA nForce3 250 and JMicron JMB363 controllers on an ASRock motherboard. It covers BIOS configuration, driver preparation, and Windows installation for RAID 0, RAID 1, and JBOD.
The document provides separate sections for NVIDIA BIOS/Windows RAID setup and JMicron BIOS/Windows RAID setup, including driver diskette creation, RAID array creation, and maintenance tasks such as rebuilding or removing arrays. This manual is written in Chinese.
| Supported RAID levels | RAID 0, RAID 1, JBOD |
|---|---|
| Northbridge chipset | NVIDIA nForce3 250 |
| SATAII controller | JMicron JMB363 |
