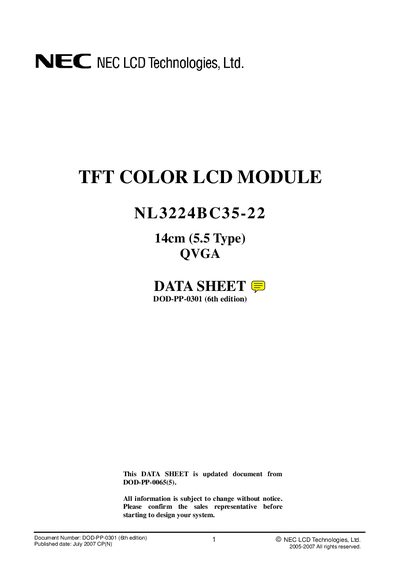

This is a data sheet for NL3224BC35-22
The NEC NL3224BC35-22 is a 14 cm (5.5‑inch) QVGA TFT LCD module with an a‑Si active‑matrix driver, offering 262,144 colors, a 320 × 240 pixel resolution, and wide viewing angles.
The datasheet lists mechanical dimensions, electrical ratings, a typical power consumption of 3.8 W, operating temperature range from –10 °C to +75 °C, backlight details, connector information, and reliability and precaution guidelines.
| Display area | 111.36 mm × 83.52 mm |
|---|---|
| Diagonal size | 14 cm (5.5 inches) |
| Resolution | 320 × 240 pixels |
| Contrast ratio | 500:1 (typ.) |
| Power consumption | 3.8 W (typ.) |
| Operating temperature (rear surface) | -10 °C to +75 °C |
| Storage temperature | -30 °C to +80 °C |
| Backlight type | Edge light with 2 cold cathode fluorescent lamps |
| Module size | 134.0 mm × 104.5 mm × 12.5 mm (typ.) |
| Weight | 215 g (typ.) |
The module has a resolution of 320 × 240 pixels.
Typical power consumption is 3.8 W, not including inverter dissipation.
The rear surface can operate from –10 °C to +75 °C, while the front surface is rated –10 °C to +70 °C.
It uses an edge‑light design with two cold cathode fluorescent lamps.
