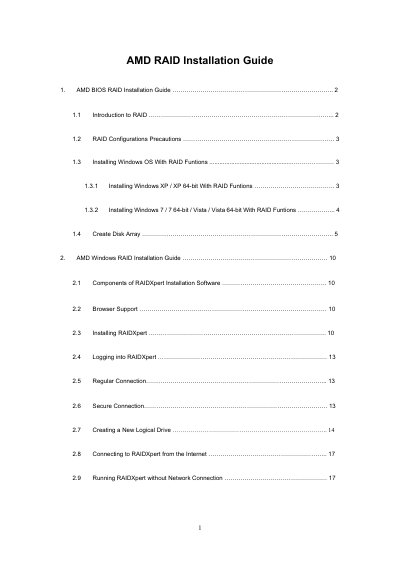

This document introduces AMD BIOS RAID installation guide, including how to configure RAID functions using FastBuild BIOS tool and create logical drives using RAIDXpert
The first part of the guide covers configuring RAID in the AMD BIOS. It shows how to set the SATA operation mode to RAID, create disk arrays, choose RAID levels (RAID 0, 1, 10, Ready, JBOD) and define logical drives using the FastBuild utility.\n\nThe second part describes installing Windows with RAID, installing the RAIDXpert management software, supported browsers, driver installation, and remote management of logical drives on the AMD SB750 SATA RAID controller.
| Supported browsers for RAIDXpert | Internet Explorer 6.0, Mozilla Suite 1.7, Mozilla Firefox 1.0, Netscape Navigator 7.1 |
|---|---|
| Supported RAID levels (BIOS utility) | RAID 0, RAID 1, RAID 10, RAID Ready, JBOD |
| Maximum physical drives supported | Up to four drives |
| RAID driver name for Windows XP | AMD AHCI Compatible RAID Controller‑x86 platform |
Enter the BIOS Setup Utility, go to the Advanced screen → Storage Configuration, and set the “SATA Operation Mode” option to [RAID].
RAIDXpert works with Internet Explorer 6.0, Mozilla Suite 1.7, Mozilla Firefox 1.0, or Netscape Navigator 7.1.
The AMD SB750 SATA RAID controller can accommodate up to four physical drives.
You can choose RAID 0, RAID 1, RAID 10, RAID Ready, or JBOD as the logical drive type.
