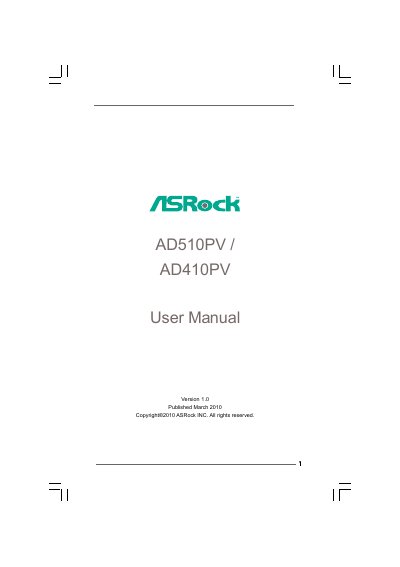

AD510PV / AD410PV User Manual
This manual provides step‑by‑step instructions for installing the ASRock AD510PV / AD410PV Mini‑ITX motherboard, including CPU, memory, storage and peripheral connections. It also details BIOS configuration, over‑clocking features, and safety notices.
Additional sections cover software support, driver installation from the supplied support CD, and troubleshooting tips. Technical specifications such as form factor, supported CPUs, memory capacity and I/O options are listed for quick reference.
| Form Factor | Mini‑ITX 6.7" x 6.7" (17.0 cm x 17.0 cm) |
|---|---|
| CPU | Intel Dual‑Core Atom D510 (AD510PV) / Intel Atom D410 (AD410PV) |
| Chipset | Intel NM10 Express |
| Memory Slots | 2 x DDR2 DIMM slots |
| Maximum Memory | 8 GB |
| Expansion Slot | 1 x PCI slot |
| Graphics | Intel Graphics Media Accelerator 3150 |
| Audio | 5.1 CH HD Audio (VIA VT1705) |
| LAN | Gigabit Ethernet (Realtek RTL8111DL) |
| SATA Ports | 2 x SATAII 3.0 Gb/s connectors |
| USB Ports | 4 x USB 2.0 ports (plus 2 headers) |
It supports the Intel Dual‑Core Atom D510 processor for the AD510PV model and the Intel Atom D410 processor for the AD410PV model.
The board includes two SATAII 3.0 Gb/s connectors.
It uses a Mini‑ITX form factor measuring 6.7 inches by 6.7 inches.
The motherboard can accommodate up to 8 GB of DDR2 memory.
