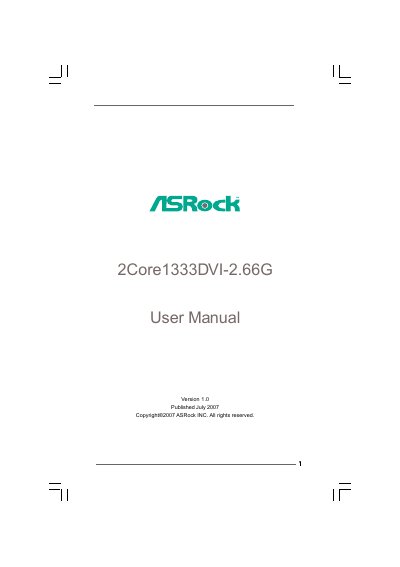

This document is the user manual published by ASRock INC., version 1.0, published in July 2007. The document describes the features and characteristics of the 2Core1333DVI-2.66G product.
This manual covers the ASRock 2Core1333DVI-2.66G motherboard, a Micro ATX board that ships with a bundled dual‑core CPU. It includes detailed installation steps for the CPU, memory, expansion cards, and storage devices, as well as safety and over‑clocking cautions.
The guide also explains the BIOS Setup Utility, showing how to configure boot options, security passwords, and hardware monitoring. A software support section describes the included support CD, driver installation, and utilities.
| Form Factor | Micro ATX (9.6 in × 9.6 in) |
|---|---|
| CPU Bundle | Dual Core CPU at FSB1333 / 2.66 GHz |
| Supported CPUs | LGA 775 Intel Dual Core, Core2 Extreme, Core2 Duo, Pentium D, Pentium 4, Celeron |
| Chipset | Northbridge Intel 945GC A2, Southbridge Intel ICH7 |
| Memory Type | DDRII, dual‑channel, 4 × DIMM slots |
| Maximum Memory | 4 GB |
| Expansion Slots | 1 × PCI‑Express x16, 1 × PCI‑Express x1, 2 × PCI, 1 × HDMR |
| Graphics | Intel GMA 950, supports DVI‑HDCP |
| Audio | 7.1‑channel HD Audio (ALC888 codec) |
| LAN | Gigabit Ethernet (Realtek RTL8111B) |
| SATA Connectors | 4 × SATAII 3.0 Gb/s ports |
It supports LGA 775 Intel processors including Dual Core, Core2 Extreme, Core2 Duo, Pentium D, Pentium 4, Celeron and Celeron D.
It uses a Micro ATX form factor measuring 9.6 in × 9.6 in.
It includes a PCI‑Express x1 Gigabit LAN port (10/100/1000 Mb/s) using a Realtek RTL8111B controller.
