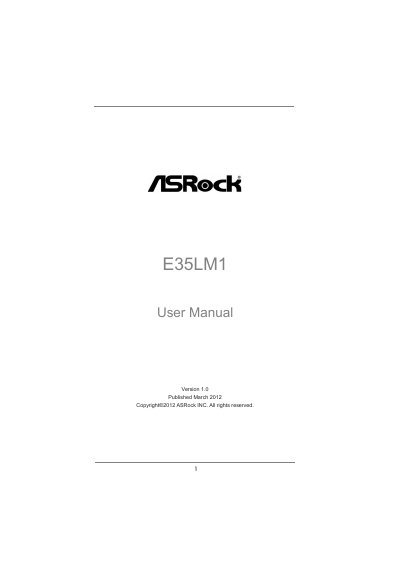

This document is the user manual for ASRock 1 E35LM1, published by ASRock INC. with version 1.0 in March 2012. The manual describes the features and characteristics of the ASRock 1 E35LM1 motherboard.
This manual covers the hardware installation steps for the ASRock E35LM1 Mini‑ITX motherboard, including package contents, memory and CPU installation, SATA and expansion slot setup, and jumper configuration. It also guides users through the UEFI BIOS utility, security settings, and software support provided on the included support CD.
Additional sections describe the motherboard specifications, safety cautions (such as handling the perchlorate‑containing lithium battery), and troubleshooting tips. Links to ASRock’s website for driver updates, BIOS flashing, and technical support are provided throughout the document.
| Form Factor | Mini‑ITX 6.7‑in x 6.7‑in (17.0 cm x 17.0 cm) |
|---|---|
| CPU | AMD Zacate E‑240 APU |
| Chipset | AMD A50M |
| Expansion Slot | 1 x PCI Express 2.0 x16 (x4 mode) |
| Integrated Graphics | AMD Radeon HD 6310 (DX11 class, 512 MB shared) |
| Audio Codec | Realtek ALC887 7.1‑channel HD Audio |
| LAN | Realtek RTL8111E Gigabit Ethernet |
| SATA3 Connectors | 4 x SATA3 6.0 Gb/s ports |
| BIOS | 32 Mb AMI UEFI BIOS |
The board includes four SATA3 6.0 Gb/s connectors that support NCQ, AHCI, and hot‑plug functions.
