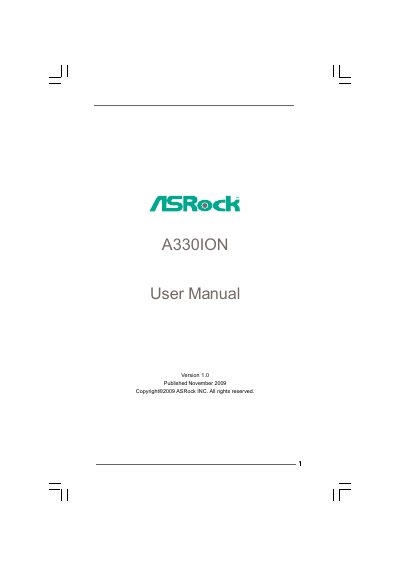

ASRock A330ION User Manual
This manual explains how to install and configure the ASRock A330ION Mini‑ITX motherboard, covering hardware installation, BIOS setup, and software support. It also includes safety notices, FCC compliance information, and warranty details.
The document contains a detailed table of contents, specifications, layout diagrams, connector descriptions, and step‑by‑step guides for installing memory, storage, and peripherals, as well as instructions for updating the BIOS and using ASRock utilities.
| Form Factor | Mini‑ITX (6.7 in x 6.7 in) |
|---|---|
| CPU | Intel Dual‑Core Atom 330, 1.6 GHz, Hyper‑Threading, EM64T |
| Memory | 2 × DDR3 DIMM slots, up to 4 GB total, DDR3‑1066/800 non‑ECC |
| Expansion Slot | 1 × PCI Express 2.0 × 16 |
| Audio | 7.1 CH HD Audio (VIA VT2020 Codec) |
| LAN | Gigabit Ethernet (10/100/1000 Mb/s) with RTL8211CL PHY |
The motherboard supports Microsoft Windows 7/7 64‑bit, Vista/ Vista 64‑bit, and Windows XP/XP 64‑bit.
There are four SATA II 3.0 Gb/s connectors, each supporting RAID, NCQ, AHCI, and Hot Plug.
