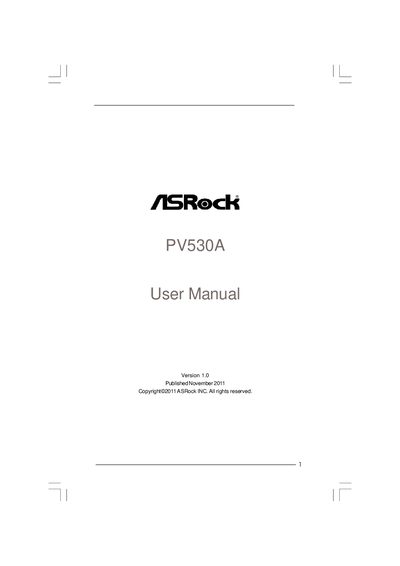

ASRock PV530A Motherboard User Manual

This document is the PV530A User Manual published by ASRock INC. in November 2011. Copyright belongs to ASRock INC. The manual includes instructions and specifications for the PV530A product.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 39
File format: PDF
File size: 307 KB
Published: 02 May, 2012
Updated: 29 September, 2023
Model: PV530A
MD5 checksum: 72504DF4A3411D189334E895C7B285F6
PDF: ASRock PV530A Motherboard User Manual PDF

About this manual

This manual introduces the ASRock PV530A Micro ATX motherboard, its package contents and key features. It guides users through hardware installation, including memory modules, expansion slots, SATA drives and connector setup.

The document also covers BIOS configuration, overclocking utilities, hardware health monitoring, and software support via the included Support CD. Safety notices, FCC compliance and disposal instructions are included.

What's inside

Introduction
Specifications
Motherboard Layout
Installation
BIOS Setup Utility
Software Support
Safety and Compliance

Specifications

Form Factor	Micro ATX (8.5" x 6.7")
CPU	VIA PV530 Processor (1.8 GHz)
Expansion Slots	1 × PCI Express 2.0 x16 (x8 mode), 1 × PCI
Audio	5.1‑channel HD Audio (VIA VT1705 codec)

Frequently asked questions

Which Windows operating systems are supported by the PV530A motherboard?

The board supports Microsoft Windows 7, Vista and XP.

How many SATA2 connectors does the PV530A have?

It provides two SATA2 3.0 Gb/s connectors.

Where can I obtain BIOS updates for the PV530A?

BIOS updates are available on the ASRock website.
