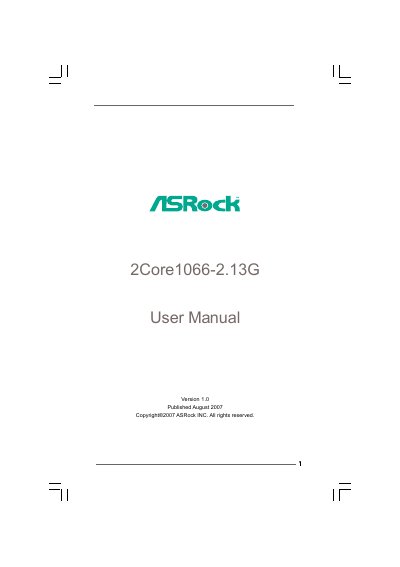

This document is the user manual for 11111 2Core1066-2.13G, published in August 2007, copyright by ASRock INC. The manual describes the features and characteristics of the product.
This manual covers everything needed to set up the ASRock 2Core1066-2.13G Micro‑ATX motherboard, including package contents, hardware installation, and BIOS setup. Detailed sections guide users through CPU, memory, and peripheral installation, as well as driver and utility installation from the support CD.
Additional chapters describe BIOS features, security settings, boot configuration, and software support for Windows operating systems. Safety warnings, over‑clocking cautions, and regulatory compliance information are also included.
| Form Factor | Micro ATX (9.6" x 9.0") |
|---|---|
| CPU Support | Dual Core CPU at FSB1066 / 2.13 GHz |
| Supported CPUs | LGA 775 Intel Dual Core, Core 2 Duo, Pentium D, Pentium 4, Celeron, etc. |
| Chipset | Northbridge Intel® 945GC A2, Southbridge Intel® ICH7 |
| Maximum Memory Capacity | 4 GB |
| Expansion Slots | 1 × PCI‑Express x16, 1 × PCI‑Express x1, 2 × PCI, 1 × HDMR |
| Graphics | Intel® Graphics Media Accelerator 950 |
| Audio | 7.1‑channel HD Audio (ALC888 codec) |
| LAN | Realtek PCIE x1 10/100 Ethernet (8101E) |
| SATA Connectors | 4 × SATAII 3.0 Gb/s ports |
| USB Ports | 4 × USB 2.0 ports |
| BIOS | 4 MB AMI BIOS (v2.3.1) |
It is a Micro ATX board measuring 9.6 in × 9.0 in.
The board includes four USB 2.0 ports.
It supports LGA 775 Intel Dual‑Core, Core 2 Duo, Pentium D, Pentium 4, Celeron and related models.
The motherboard can hold up to 4 GB of DDRII memory.
