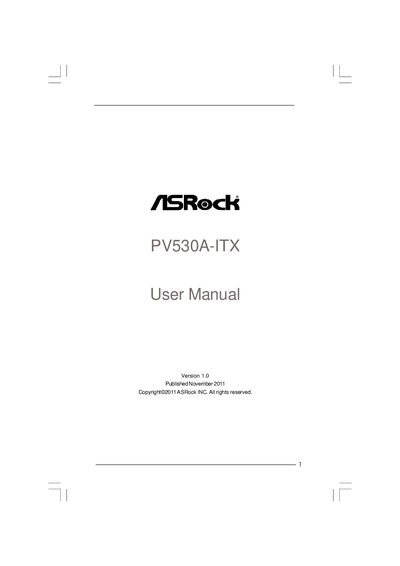

This document is the user manual for the PV530A-ITX motherboard by ASRock. The manual provides specifications and information about the motherboard, as well as instructions for use.
This manual introduces the ASRock PV530A-ITX Mini‑ITX motherboard, describing its design, supported components, and key features. It includes a quick‑start guide, detailed hardware layout, and safety notices.
The document is organized into sections covering specifications, motherboard layout, installation procedures for memory, CPUs, and peripherals, BIOS configuration utilities, and software support via the included support CD. It also provides troubleshooting tips and regulatory information.
| Form Factor | Mini‑ITX (6.7 in x 6.7 in) |
|---|---|
| CPU | VIA PV530 Processor, 1.8 GHz, FSB800 MHz |
| Chipset | VIA VX900 A3 |
| Audio | 5.1‑channel HD Audio, VIA VT1705 codec |
| LAN | Realtek PCIE x1 LAN 8105E, 10/100 Mbps |
It supports the VIA PV530 processor running at 1.8 GHz with an FSB of 800 MHz.
It supports Microsoft Windows 7, Vista, and XP.
