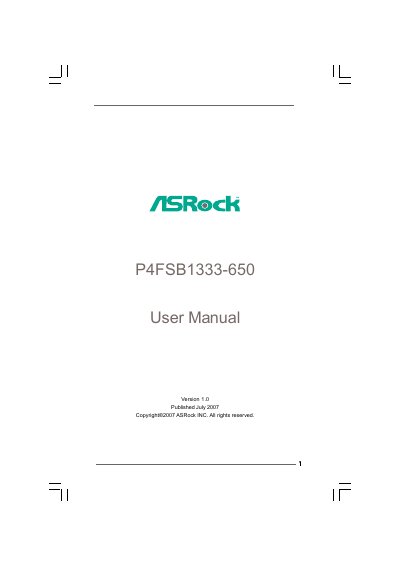

ASRock P4FSB1333-650 Motherboard User Manual

This document is the user manual for P4FSB1333-650 published by ASRock INC, which describes the features and characteristics of the product.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 42
File format: PDF
File size: 425 KB
Published: 02 May, 2012
Updated: 29 September, 2023
Model: P4FSB1333-650
MD5 checksum: 837157B98AEE01CF538C76641B0648D8
PDF: ASRock P4FSB1333-650 Motherboard User Manual PDF

About this manual

This manual covers everything needed to install and configure the ASRock P4FSB1333-650 motherboard, including package contents, hardware installation steps, and BIOS setup. It also details the supported CPUs, memory types, and expansion options.

Additional sections describe software support, driver installation from the included support CD, and troubleshooting tips. The document includes safety warnings, FCC compliance information, and contact details for further assistance.

What's inside

Introduction
Installation
BIOS Setup Utility
Software Support
Specifications
Hardware Layout
Expansion Slots
Audio and LAN
Operating System Compatibility

Specifications

Form Factor	Micro ATX 9.6" x 9.0" (24.4 cm x 22.9 cm)
CPU Support	LGA 775 for Intel® Dual Core, Core2 Duo, Pentium® D, Pentium® 4, Celeron®
Chipset	Northbridge Intel® 945GC A2, Southbridge Intel® ICH7
Expansion Slots	1 PCI‑Express x16, 1 PCI‑Express x1, 2 PCI, 1 HDMR

Frequently asked questions

Which Windows operating systems are supported by the P4FSB1333-650 motherboard?

The board supports Microsoft Windows 2000, Windows XP, Windows XP 64‑bit, Windows Vista, and Windows Vista 64‑bit.

What LAN controller is used on the P4FSB1333-650 board?

The board uses a Realtek PCI‑Express x1 LAN 8101E controller with 10/100 Ethernet support.
