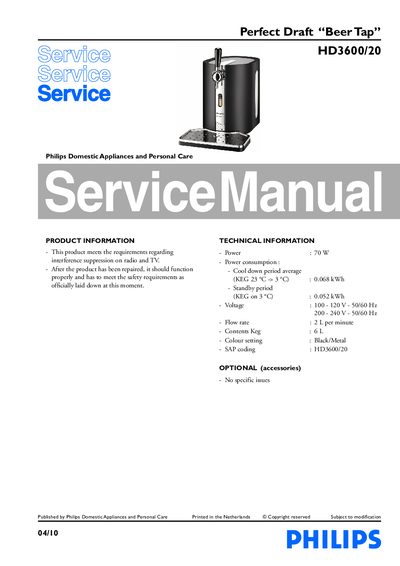

This document is the service manual for Philips Domestic Appliances and Personal Care, providing information on the features and technical specifications of the Perfect Draft “Beer Tap” HD3600/20.
This manual provides detailed service instructions for the Philips HD3600/20 Perfect Draft Beer Tap. It includes step‑by‑step disassembly and re‑assembly procedures for the rear case, keg connector, display, fan, Peltier element, pressure sensor PCB and pump unit, as well as safety warnings.
The document also describes the appliance’s electrical circuit, service test routines, troubleshooting tips for common faults such as air leakage, cooling problems, and display errors, and lists the technical specifications and optional accessories.
| Power | 70 W |
|---|---|
| Voltage | 100‑120 V 50/60 Hz, 200‑240 V 50/60 Hz |
| Flow rate | 2 L/min |
| Keg capacity | 6 L |
| Colour setting | Black/Metal |
| Cool‑down energy consumption | 0.068 kWh (KEG 23 °C → 3 °C) |
| Standby energy consumption | 0.052 kWh (KEG on 3 °C) |
Disconnect the appliance from the mains, remove the keg, short connector J3, connect a push button to connector J9, then reconnect the appliance to mains.
The maximum force that may be applied is 0.6 Nm.
