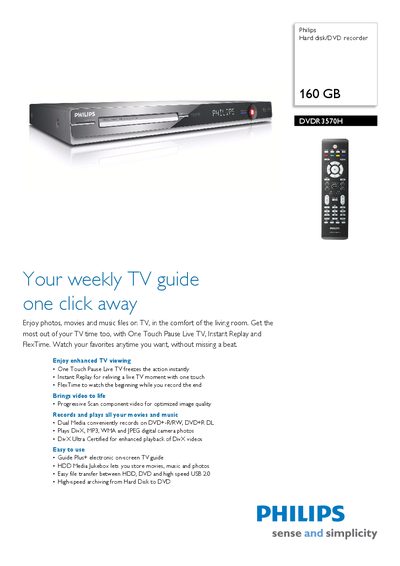

Philips Hard disk/DVD recorder 160 GB DVDR3570H is a hard disk DVD recorder launched by Philips, which supports One Touch Pause Live TV, Instant Replay and FlexTime functions, and supports recording and playing DVD+-R/RW, DVD+R DL, DivX, MP3, WMA and JPEG digital camera photos etc.
The Philips DVDR3570H is a hard‑disk/DVD recorder with a 160 GB internal drive, dual media support (DVD±R/RW, DVD+R DL) and integrated TV functions such as One Touch Pause Live TV, Instant Replay and FlexTime. It plays a wide range of media formats including DivX, MP3, WMA, JPEG and supports progressive‑scan video.
This manual covers the device’s highlights, detailed specifications, connection options, power requirements, accessories, and dimensions. It also explains how to use features like the HDD Media Jukebox, electronic program guide, and recording modes.
| Hard Disk Capacity | 160 GB |
|---|---|
| Picture D/A Converter | 10 bit, 54 MHz |
| Picture A/D Converter | 10 bit, 54 MHz |
| Sound D/A Converter | 24 bit, 96 kHz |
| Sound A/D Converter | 24 bit, 96 kHz |
| Recording System | PAL |
| Video Compression Format | MPEG2 |
| Power Consumption | 28 W (operating), 3.7 W (standby) |
| Power Supply | 220‑240 V, 50 Hz |
| Product Dimensions (W×D×H) | 435 mm × 324 mm × 43 mm |
The recorder includes a built‑in 160 GB hard disk.
It records video using the MPEG2 format.
The unit consumes 28 W during operation and 3.7 W in standby mode.
Rear connections include analog audio L/R out, composite video, digital coaxial out, RF antenna, S‑Video, SCART1 (CVBS, RGB), SCART2 (CVBS, RGB), and component video output.
