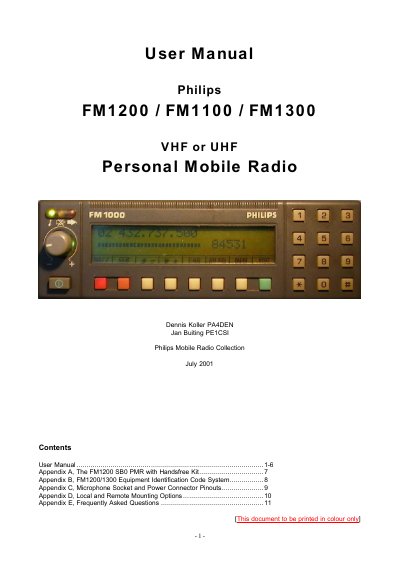

This document is the user manual for Philips FM1200 / FM1100 / FM1300 VHF or UHF personal mobile radio, describing the features and usage of the product.
This manual describes the operation of the Philips FM1200, FM1100 and FM1300 personal mobile radios. It covers keyboard layout, frequency selection, CTCSS tone settings, power adjustments, repeater shift, scanning, and the extensive menu system. Detailed step‑by‑step procedures are provided for storing channels, configuring tone squelch, and using the text entry functions.
Appendices give wiring diagrams, equipment identification codes, microphone and power connector pinouts, mounting options, and a comprehensive FAQ that answers common conversion and usage questions.
| Repeater shift default (UHF) | 1.6 MHz |
|---|---|
| Repeater shift default (VHF) | 600 kHz |
| CTCSS tone range | 67.0 Hz – 250.3 Hz |
| Maximum favourite channels per bank | 100 |
| Maximum preset frequencies per bank | 100 |
Check the Status Menu (H‑5); if you see “Tone CPU not active” the tone‑CPU PROM or its ground link is likely not installed correctly.
No, 9.6 kHz packet radio is not possible because the varicap‑based automatic RF tracking system prevents such narrow spacing; 1.2 kHz is possible with a modem.
Up to 100 favourite channels can be stored per bank.
