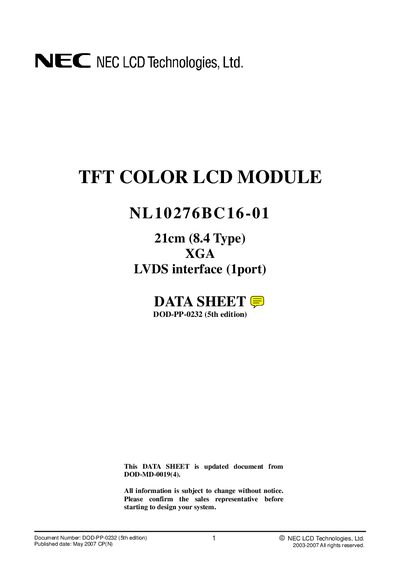

This is a datasheet that introduces the features of the NL10276BC16-01 21cm (8.4 Type) XGA LVDS interface (1port) TFT COLOR LCD MODULE product.
This datasheet describes the NEC NL10276BC16-01 21 cm (8.4‑inch) XGA LCD module. It includes an overview of the module structure, LVDS interface, and backlight design, along with mechanical and electrical specifications.
Key sections cover general specifications, detailed mechanical dimensions, absolute maximum ratings, electrical characteristics, interface pin functions, display performance (colors, contrast, viewing angles), reliability tests, and outline drawings for front and rear views.
| Display area | 170.496 mm (H) × 127.872 mm (V) |
|---|---|
| Diagonal size | 21 cm (8.4 inches) |
| Resolution | 1024 × 768 pixels |
| Color depth | 16,777,216 colors (8‑bit) / 262,144 colors (6‑bit) |
| Contrast ratio | 400:1 (typ.) |
| Viewing angle | Horizontal 85°, Vertical 85° (typ.) |
| Module size | 200.0 mm (W) × 152.0 mm (H) × 16.5 mm (D) (typ.) |
| Weight | 465 g (typ.) |
| Power consumption | 9.8 W (typ.) |
| Backlight type | Edge‑light with 4 cold‑cathode fluorescent lamps |
The module uses an LVDS interface (1 port).
Typical power consumption is 9.8 W, not including inverter dissipation.
The display has a typical contrast ratio of 400:1.
The panel’s diagonal size is 21 cm (8.4 inches).
