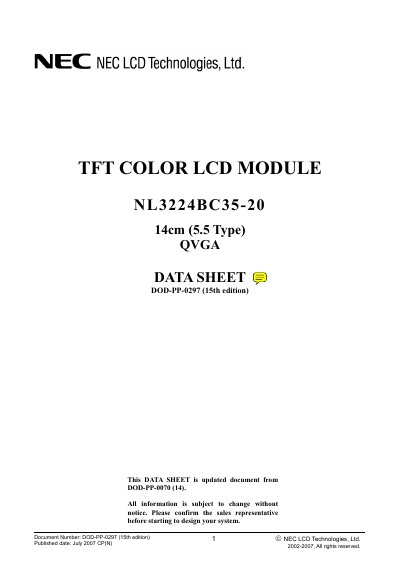

The NL3224BC35-20 is a 14 cm (5.5‑inch) QVGA TFT LCD module with a 320 × 240 pixel resolution, 262,144 colors and a wide viewing angle. It is designed for industrial use and complies with UL60950‑1 and RoHS directives.
Key specifications include a display area of 111.36 mm × 83.52 mm, module size of 134 × 104.5 × 12.5 mm, typical power consumption of 3.8 W, and operation over a temperature range of –10 °C to +70 °C. The module uses a 3.3 V or 5.0 V supply and features replaceable cold‑cathode fluorescent backlight lamps.
| Display area | 111.36 mm × 83.52 mm |
|---|---|
| Diagonal size | 14 cm (5.5 inches) |
| Resolution | 320 × 240 pixels |
| Color depth | 262,144 colors |
| Dot pitch | 0.116 mm (H) × 0.348 mm (V) |
| Module size | 134 × 104.5 × 12.5 mm (typ.) |
| Weight | 210 g (typ.) |
| Contrast ratio | 400:1 (typ.) |
| Viewing angle (horizontal) | 55° (typ.) |
| Viewing angle (vertical) | 50° (typ.) |
| Power consumption | 3.8 W (typ., inverter excluded) |
| Backlight lamp type | 2 cold‑cathode fluorescent lamps |
| Power supply voltage | 3.3 V or 5.0 V |
| Storage temperature | -30 °C to +80 °C |
It can be powered from either 3.3 V or 5.0 V.
Typical power consumption is 3.8 W, not including the inverter.
