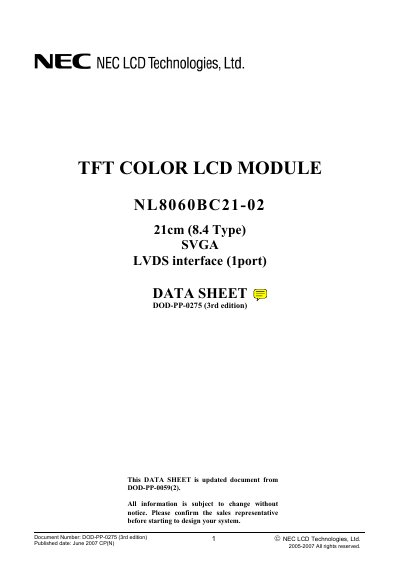

This is a technical specification sheet about the NL8060BC21-02 product.
The NL8060BC21-02 is a 21 cm (8.4‑inch) SVGA TFT LCD module with an LVDS interface, designed for industrial applications such as computers, test equipment, and automation. It features a wide viewing angle, high contrast, and an edge‑light backlight with replaceable lamps.
The datasheet lists mechanical dimensions, electrical ratings, and performance specs, including a 800 × 600 pixel resolution, 16.8 M colors, 600:1 contrast ratio, typical power consumption of 5.5 W, and a 3.3 V supply for the signal processing board. Detailed block diagrams, pin functions, and reliability test procedures are also provided.
| Display area | 170.4 mm × 127.8 mm |
|---|---|
| Diagonal size | 21 cm (8.4 inches) |
| Resolution | 800 × 600 pixels |
| Color depth | 16,777,216 colors (8‑bit input) |
| Contrast ratio | 600:1 (typ.) |
| Viewing angle (horizontal) | 80° left / 80° right (typ.) |
| Viewing angle (vertical) | Up 80°, Down 60° (typ.) |
| Power consumption | 5.5 W (typ.) |
| Power supply voltage (signal board) | 3.3 V (typ.) |
| Backlight type | Edge‑light, 2 cold‑cathode fluorescent lamps |
| Module size | 200 mm × 152 mm × 10.5 mm (typ.) |
It uses a single‑port LVDS interface (receiver THine THC63LVDF84B or equivalent).
The module typically consumes 5.5 W, not including inverter losses.
The typical contrast ratio is 600:1.
