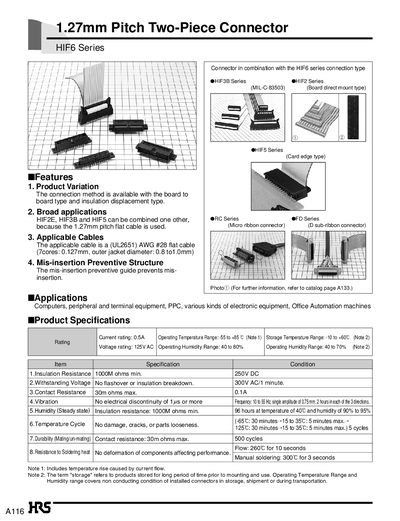

A116 1.27mm Pitch Two-Piece Connector HIF6 Series is a widely used connector, suitable for board to board connection and insulation displacement connection, using 1.27mm pitch flat cable.
The HIF6 series from Hirose provides 1.27 mm pitch two‑piece connectors in board‑to‑board and insulation‑displacement configurations. Variants include right‑angle, straight, lock‑type, and D‑sub ribbon styles, supporting a wide range of contact counts from 20 to 100.
Key specifications such as current rating (0.54 A), voltage rating (125 V AC), and operating temperature range (‑55 °C to +85 °C) are listed, along with material details (PBT insulator, copper contacts with selective gold plating) and ordering information for both socket/receptacle and pin‑header versions.
| Current rating | 0.54 A |
|---|---|
| Voltage rating | 125 V AC |
| Operating Temperature Range | -55 °C to +85 °C |
| Storage Temperature Range | -10 °C to +60 °C |
| Insulation Resistance | 1000 MΩ min at 250 V DC |
| Withstanding Voltage | 300 V AC for 1 min |
| Contact Resistance | 30 mΩ max at 0.1 A |
| Operating Humidity Range | 40 % to 80 % |
The HIF6 series connector is rated for a current of 0.54 A.
The connector operates from –55 °C up to +85 °C.
The insulator is made of PBT (Polybutylene Terephthalate) with a UL94V‑0 rating.
