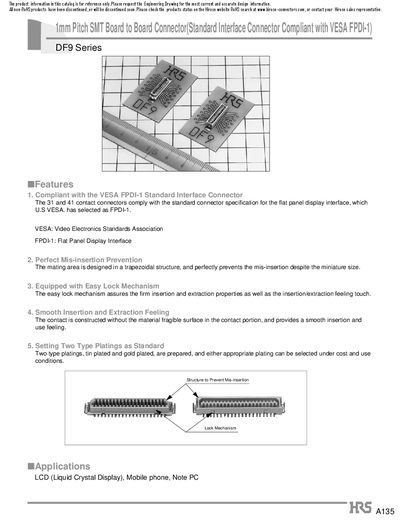

This product is a 1mm pitch SMT board to board connector that complies with the flat panel display interface standard connector specification selected by the U.S. VESA association.
The DF9 series provides 1 mm pitch SMT board‑to‑board connectors that comply with the VESA FPDI‑1 standard. Features include a trapezoidal mis‑insertion prevention design, an easy‑lock mechanism, smooth insertion/extraction, and selectable tin or gold plating.
The catalog lists electrical ratings (0.5 A current, –45 °C to +125 °C operating temperature, 150 V AC voltage), mechanical specifications, part numbers for various contact counts, and recommended soldering profiles for both reflow and manual processes.
| Current rating | 0.5 A |
|---|---|
| Operating temperature range | -45 °C to +125 °C |
| Storage temperature range | -10 °C to +60 °C |
| Voltage rating | 150 V AC |
| Insulation resistance | ≥ 500 MΩ (100 V DC) |
| Withstanding voltage | 250 V AC |
| Contact resistance | ≤ 50 mΩ (100 mA) |
| Operating humidity range | 40 %–80 % |
| Storage humidity range | 40 %–70 % |
| Plating options | Tin plated or gold plated |
The DF9 series connectors are rated for a maximum current of 0.5 A.
Both tin‑plated and gold‑plated contacts are offered, selectable according to cost and use conditions.
They operate from –45 °C up to +125 °C.
Up to two reflow cycles are allowed, each with a peak temperature of 250 °C for 60 seconds, followed by a return to normal temperature before the next cycle.
