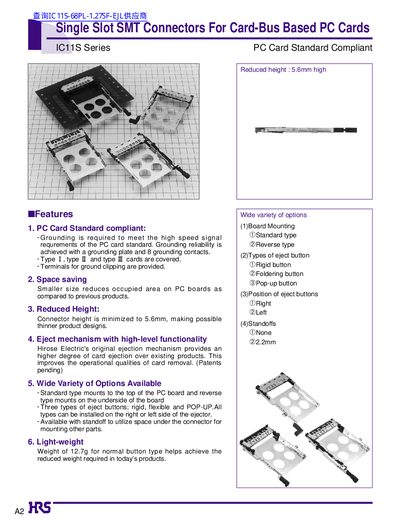

The IC11S series A2 single slot SMT connectors are designed specifically for PC cards and meet the requirements of the PC card standard. These connectors have small size, low height, high reliability and many options.
The IC11S series provides single‑slot SMT connectors for Card‑Bus based PC cards. They meet PC Card standards with grounding plates, eight grounding contacts, and an original Hirose ejection mechanism that offers higher‑level card removal. The connectors are compact (5.6 mm height), lightweight (12.7 g) and available in multiple mounting styles, eject‑button types and standoff options.
Technical specifications include a 0.5 A current rating, 125 V AC voltage rating, insulation resistance of 1000 MΩ (500 V DC), and a contact resistance of 60 mΩ max. The product operates from –55 °C to +85 °C, can withstand storage temperatures from –40 °C to +70 °C, and complies with vibration, humidity and temperature‑cycle requirements for reliable use in electronic assemblies.
| Current rating | 0.5A |
|---|---|
| Voltage rating | 125V AC |
| Insulation resistance | 1000MΩ min (500V DC) |
| Contact resistance | 60mΩ max (initial) |
| Operating temperature range | -55 °C to +85 °C |
| Storage temperature range | -40 °C to +70 °C |
| Connector height | 5.6 mm |
| Weight (normal button type) | 12.7 g |
The connector is rated for a maximum current of 0.5 A.
It can operate from –55 °C up to +85 °C.
The connector height is 5.6 mm.
The normal button type weighs 12.7 g.
